Corten Steel

Name: Corten Steel
Brand: FacadArt

Self-protecting corten steel with a characteristic patina.

Corten steels contain special alloys that show high resistance to atmospheric corrosion. These alloys generally contain elements such as copper, nickel, chromium and phosphorus. By controlling and slowing down the rusting process of the steel, these alloys increase its durability against atmospheric conditions.

Key features

Self-protecting patina
80-year service life
Warm brown-orange tone
Architectural facades & landscape

Get a quote for this product All products

Documents

Connection details (PDF)

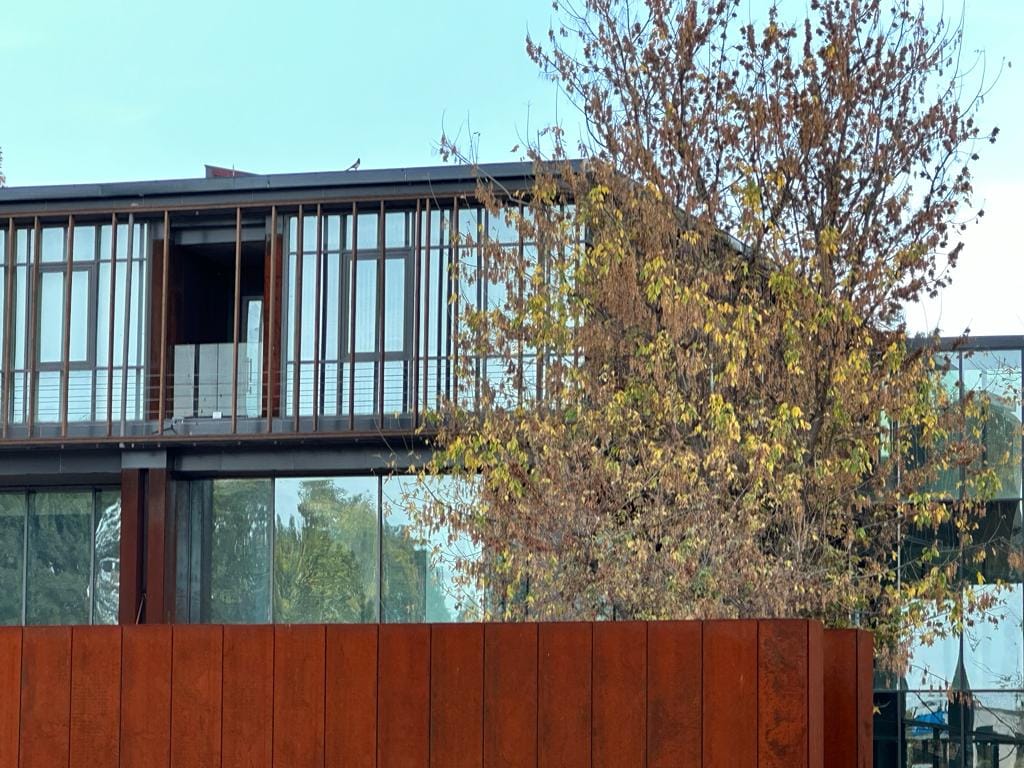

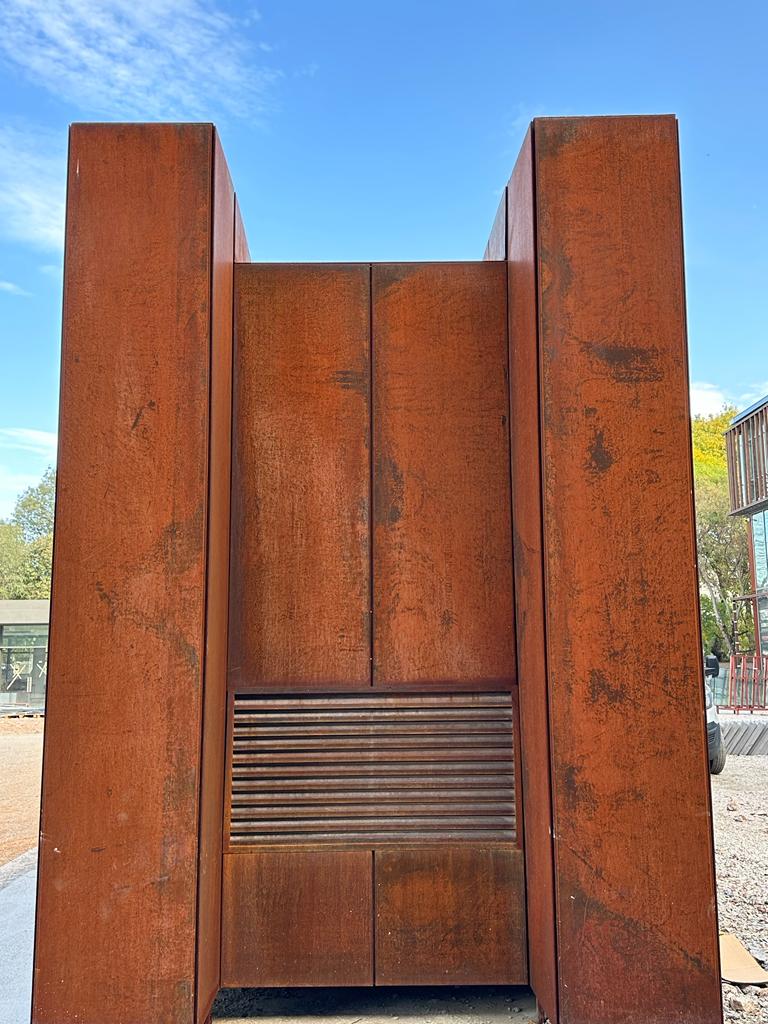

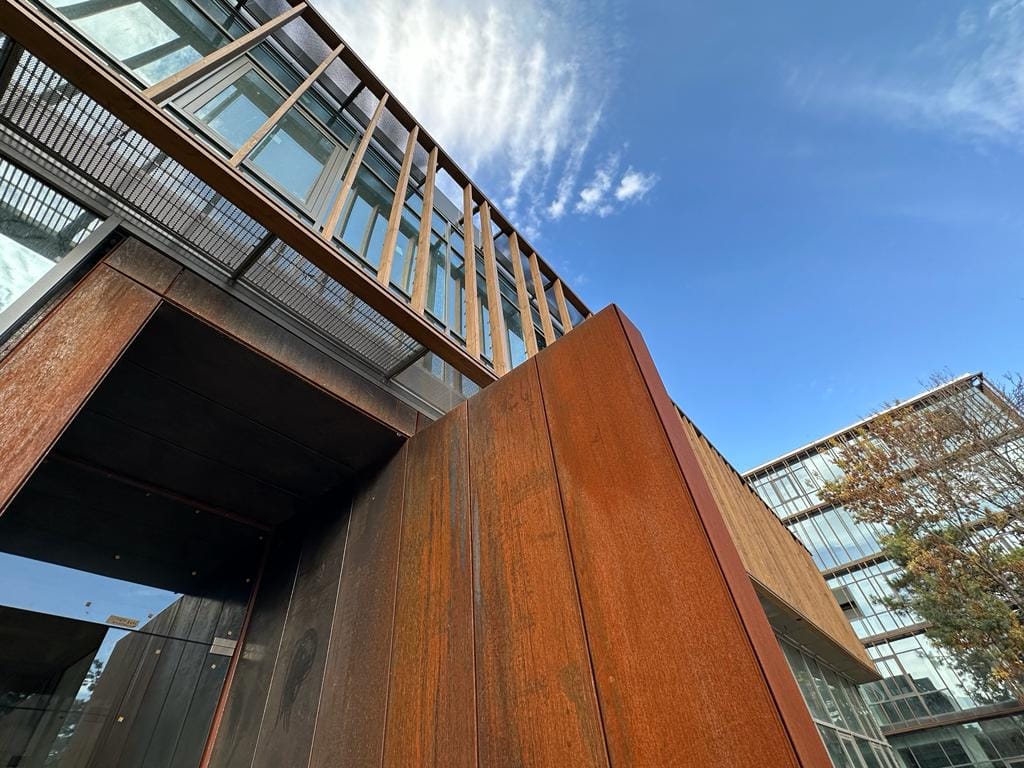

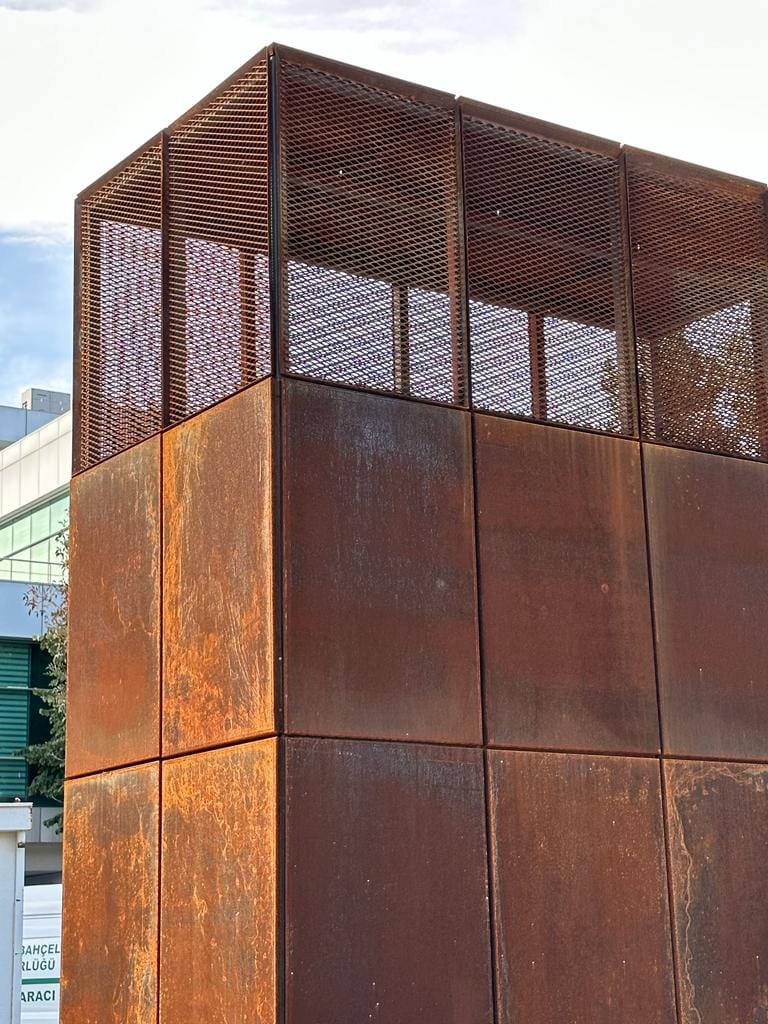

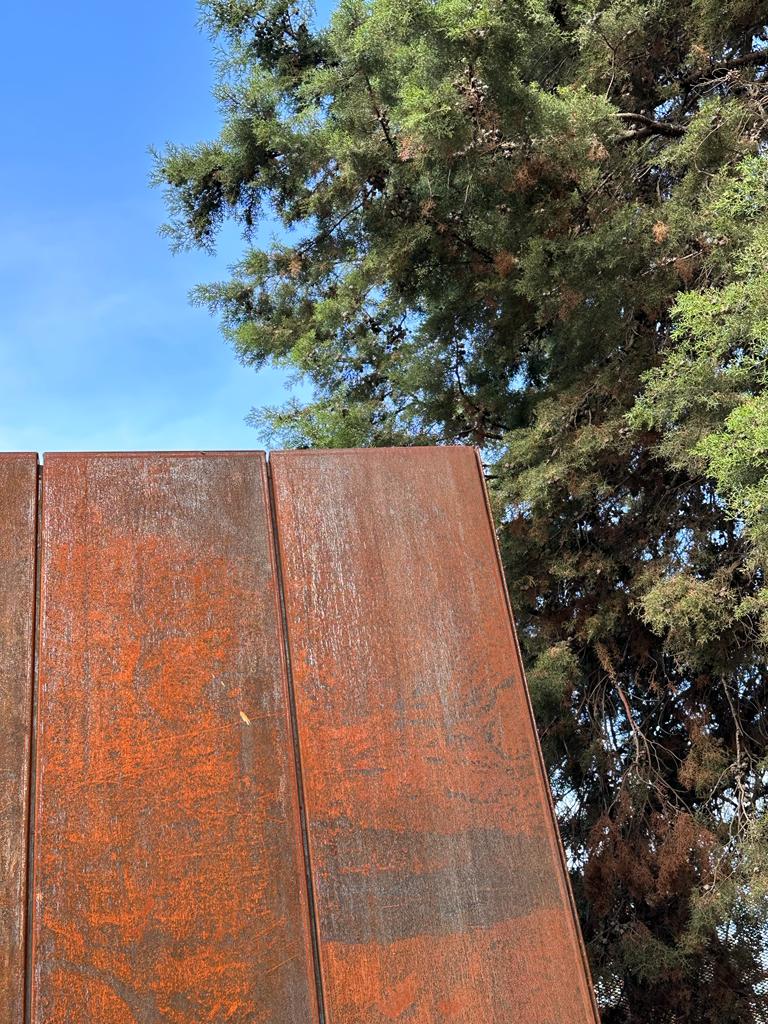

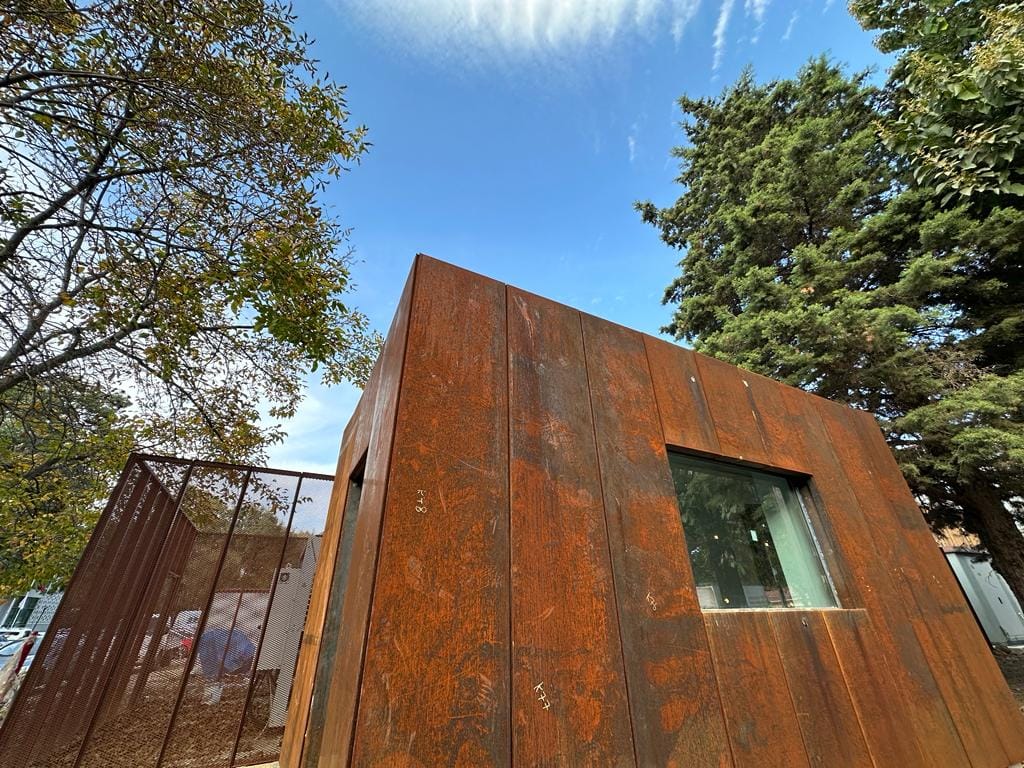

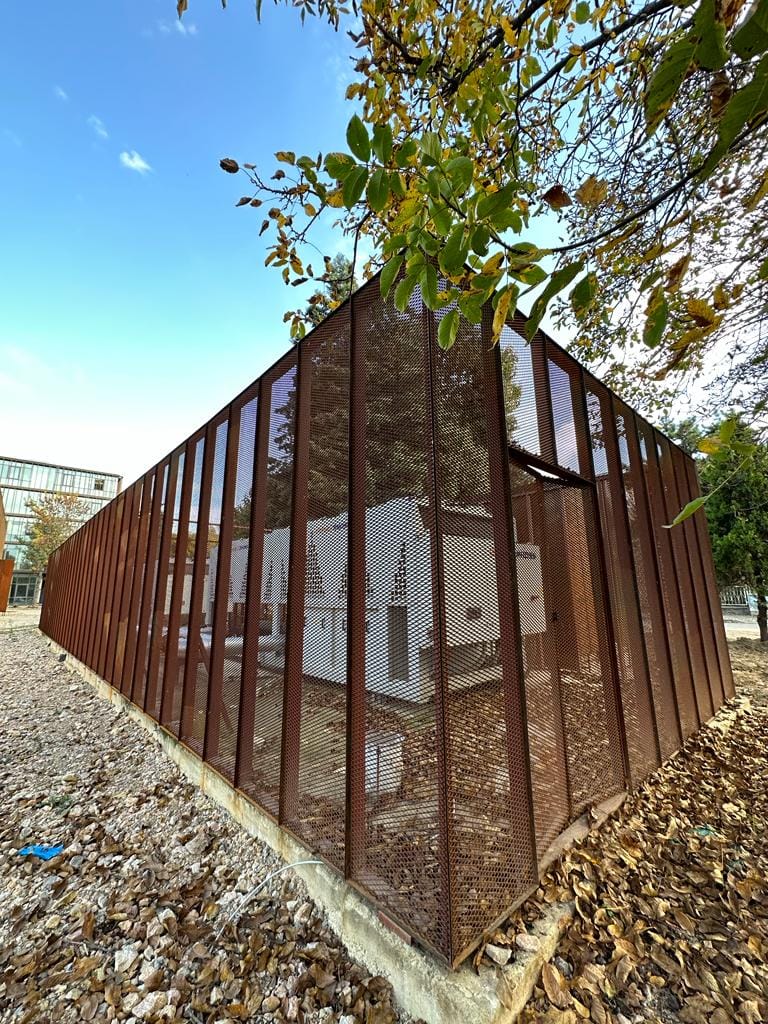

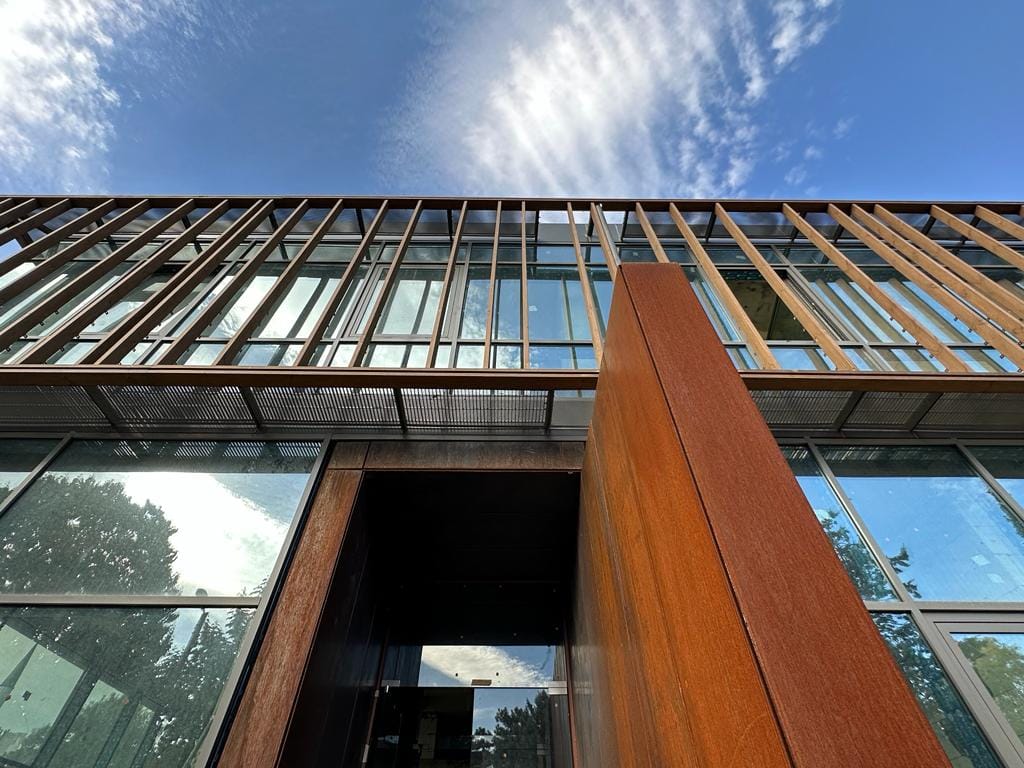

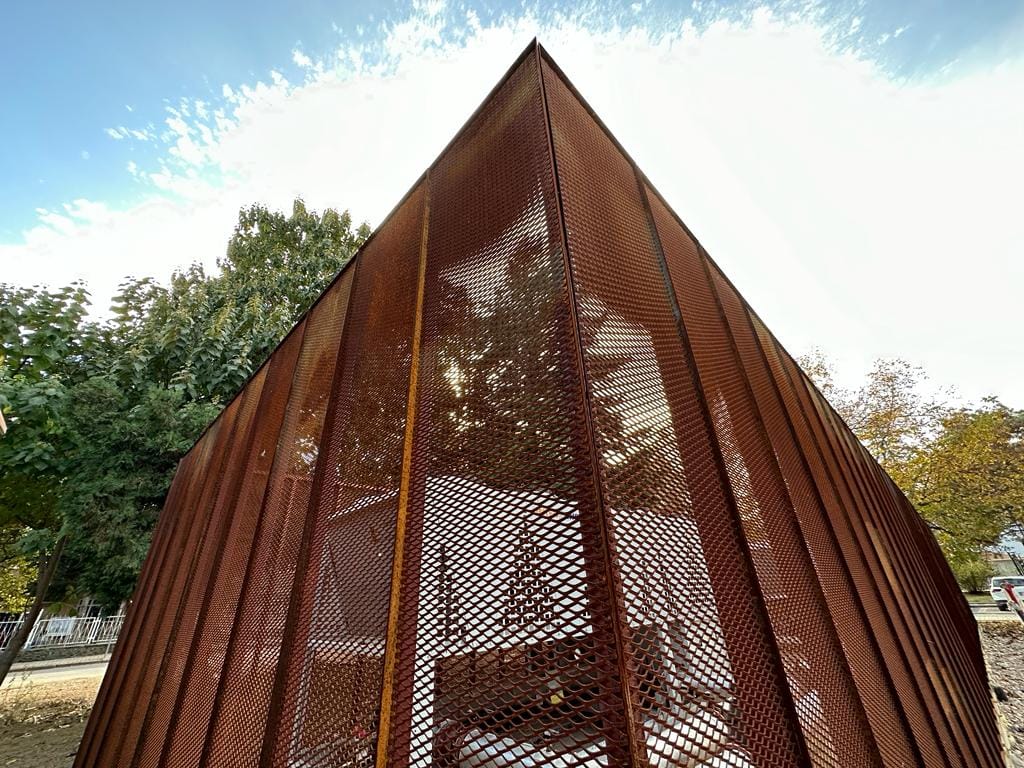

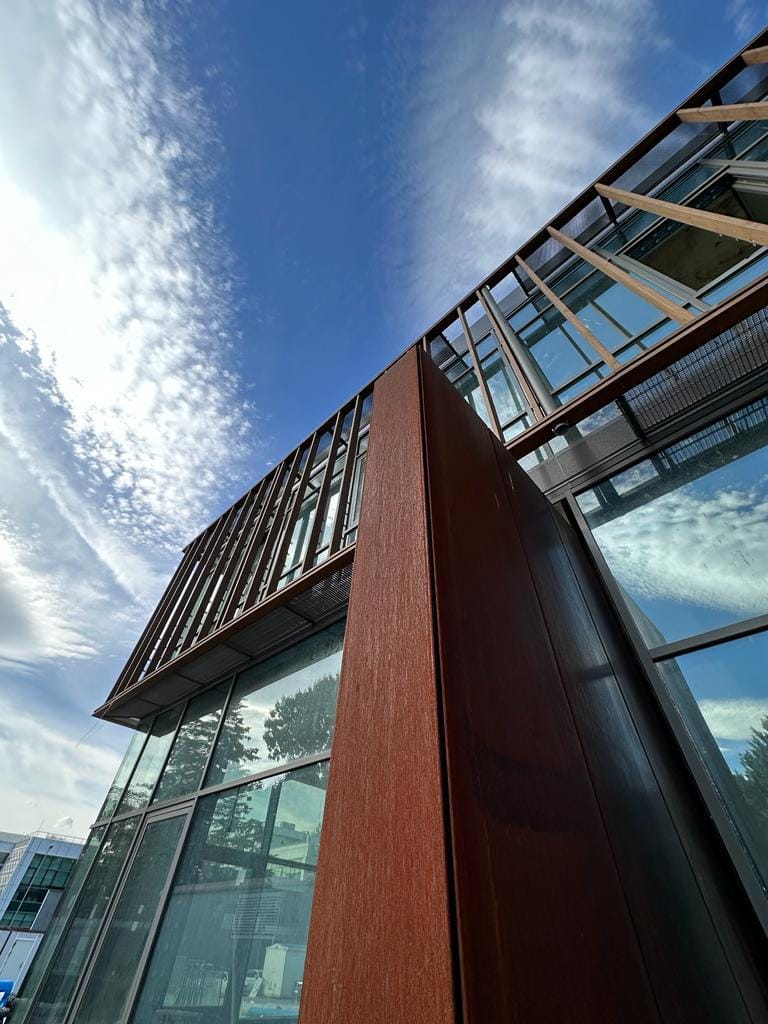

In application

Drag to explore — click an image to enlarge.

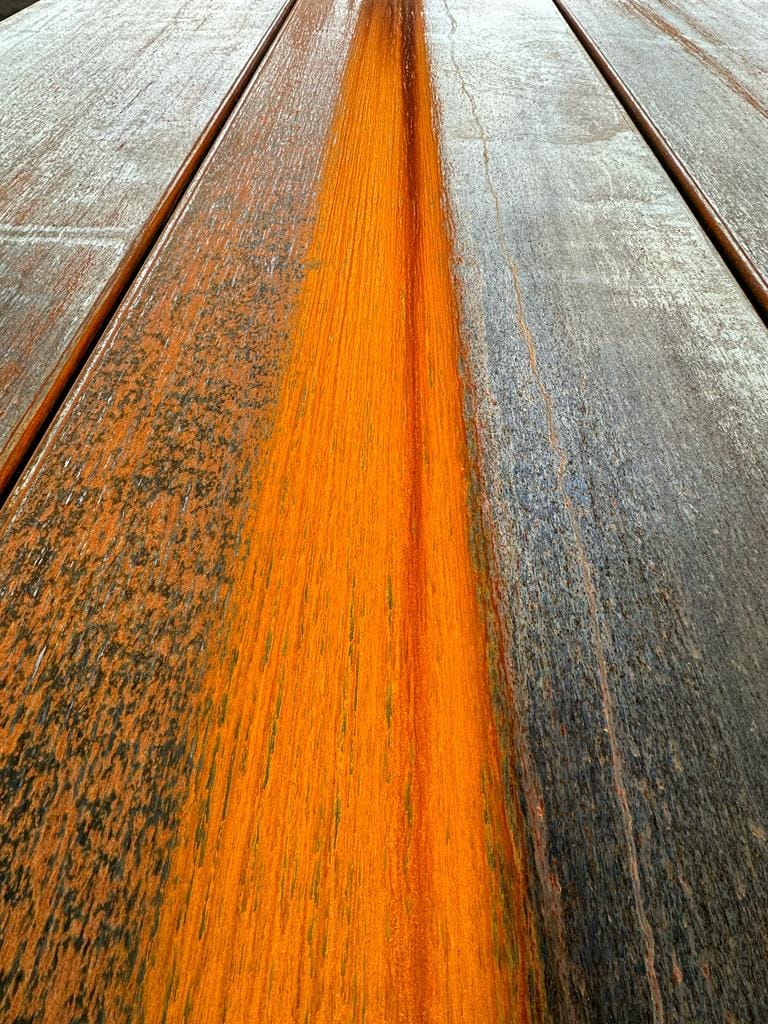

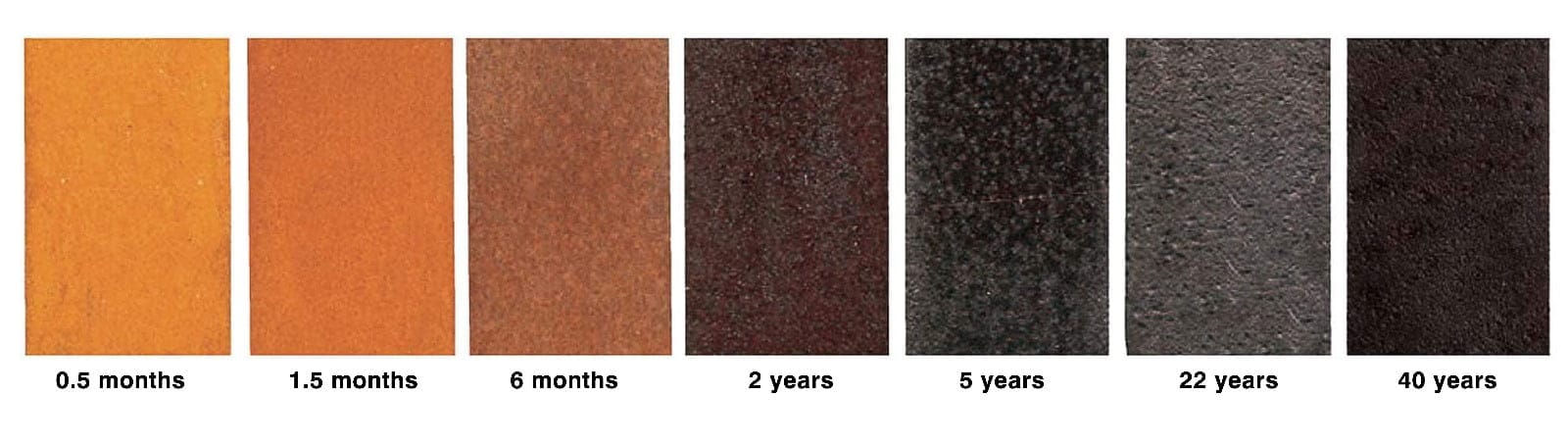

The patina

The superior corrosion resistance of corten steel is achieved thanks to an oxide layer that forms naturally on the surface of the steel. This oxide layer coats the surface of the steel and prevents the core material from being exposed to corrosion. This layer is usually called the "patina" and creates the steel's natural brown-orange colour.

The patina layer forms over time depending on atmospheric conditions and determines the aesthetic appearance of corten steel. Corten steels have become a preferred option especially in architectural applications where durability and aesthetics are at the forefront.

Mechanical properties

Grade	Material no.	Yield ReH min	Tensile Rm	°C	Impact energy (J), 16 mm
S355 J0WP Corten A	1.8945	355	485	0	27

Available thicknesses

Process	Thicknesses
Corten A — cold rolled	0.6 – 0.8 – 1 – 1.2 – 1.5 – 1.7 – 2 mm
Corten A — hot rolled	2 – 2.5 – 3 – 4 – 5 – 6 – 7 – 8 – 10 – 12 – 15 – 20 … 120 mm
