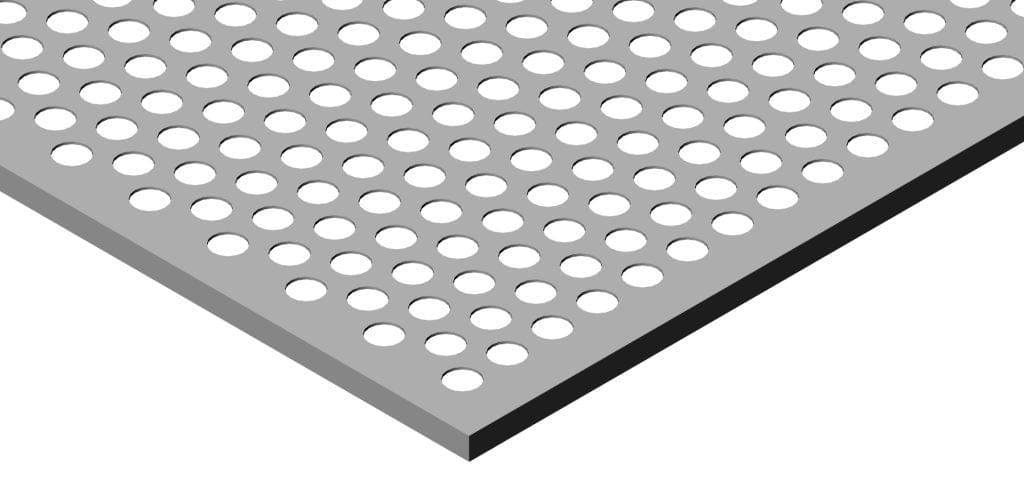

Staggered-hole perforated panels in many patterns.
Perforated metals are metal sheets with holes in various patterns and can be made from various materials (steel, aluminium, stainless steel, etc.). These holes can be in different shapes (round, square, rectangular, etc.) and sizes. When selecting perforated metal, factors such as hole diameter, spacing distance, material type and thickness must be considered. Choosing the right perforated metal suitable for the requirements of the application ensures successful results in terms of both functionality and aesthetics.
Key features
- Staggered hole pattern
- 0.5–50 mm hole range
- Round / square / slot holes
- RAL colour options
Documents
Hole sizes and spacing
Hole diameter: The hole diameters in perforated metal sheets generally vary between 0.5 mm and 50 mm. This varies depending on the intended use and aesthetic preferences.
Spacing: The distance between holes (centre to centre) can generally be between 1 and 3 times the hole diameter. For example, for a hole 5 mm in diameter, the spacing between holes can be between 5 mm and 15 mm.
Hole arrangement
Straight rows: The holes are arranged regularly. This type of arrangement is generally used in structural applications.
Diagonal: The holes are placed diagonally. This arrangement can be more aesthetically attractive and may be preferred in some fluid-dynamics applications.
Custom patterns: Custom patterns can be created to achieve a particular aesthetic appearance.
Application areas
Architecture and construction: Facade cladding, interior decoration, ceiling panels.
Industrial: Filtering, separation, ventilation systems.
Furniture and decoration: Tabletops, shelving systems, lighting elements.
Agriculture and food industry: Grain sieving, food processing machinery.
Advantages
Light weight: Thanks to the holes, the material becomes lighter, making transport and installation easier.
Ventilation: Thanks to its perforated structure, it allows air, light and sound to pass through.
Aesthetics: It offers visual appeal through various patterns and materials.
Strength: In some applications, the hole arrangement can increase the strength of the material.
Standard sizes
Pick a mesh below to see its dimensions, material and open area.

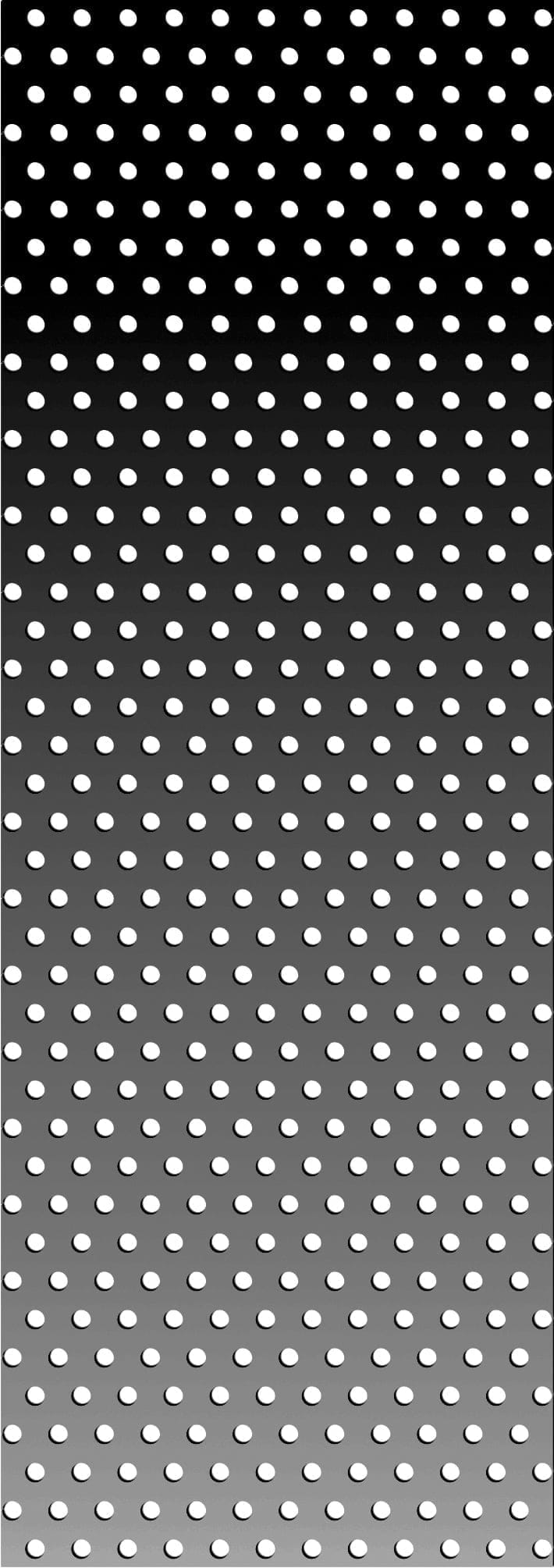

MP 020804
- Hole
- ⌀ 2 mm
- Pitch
- 8.3 × 4.8 mm
- Open area
- 15%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

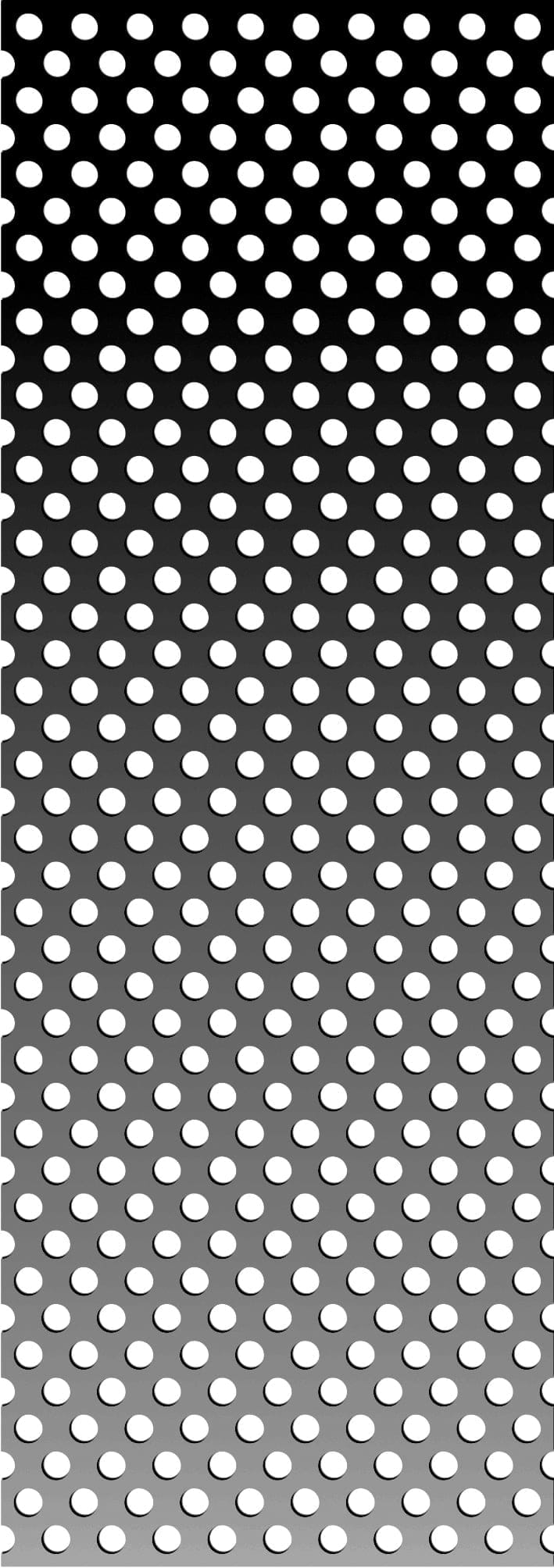

MP 030805
- Hole
- ⌀ 3 mm
- Pitch
- 8 × 5 mm
- Open area
- 28.2%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

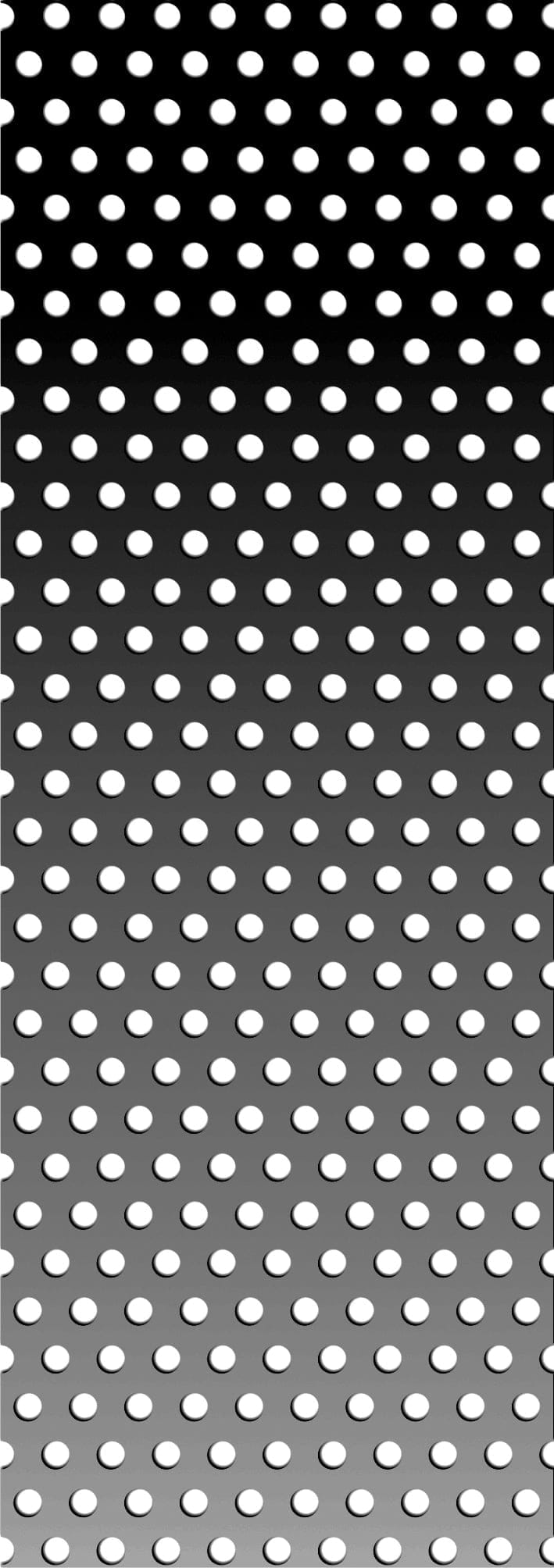

MP 031006
- Hole
- ⌀ 3 mm
- Pitch
- 10.4 × 6 mm
- Open area
- 22.5%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

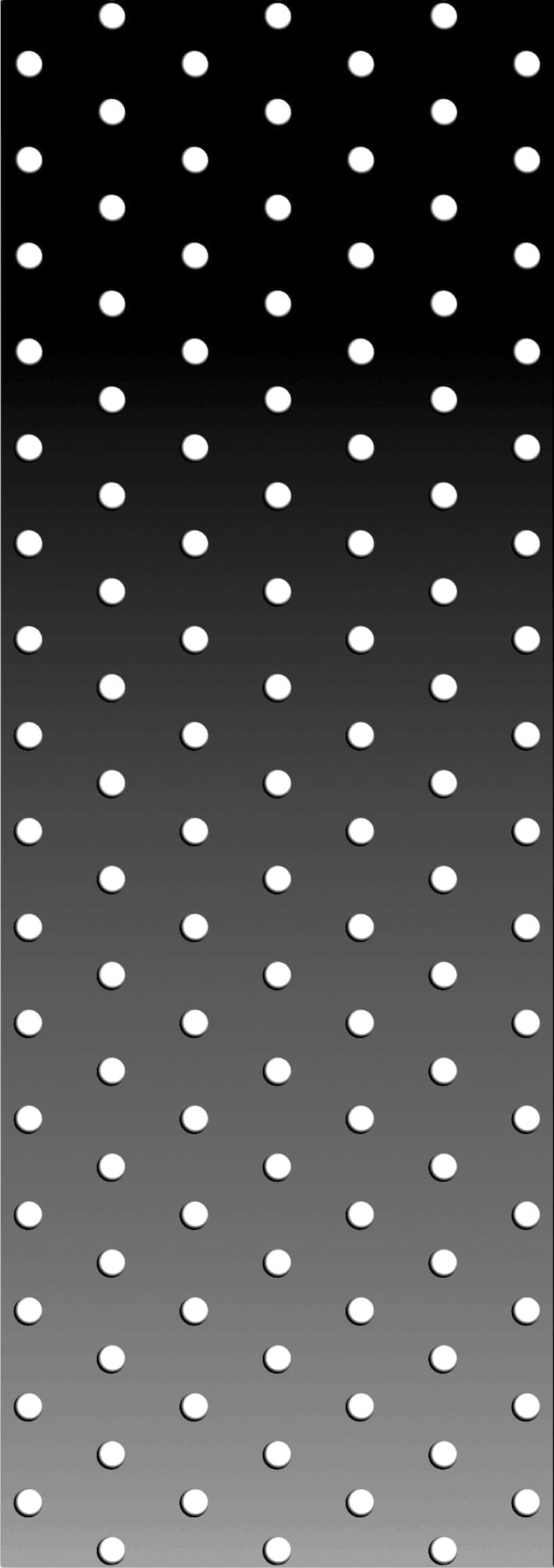

MP 031010
- Hole
- ⌀ 3 mm
- Pitch
- 10.4 mm
- Open area
- 7.5%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

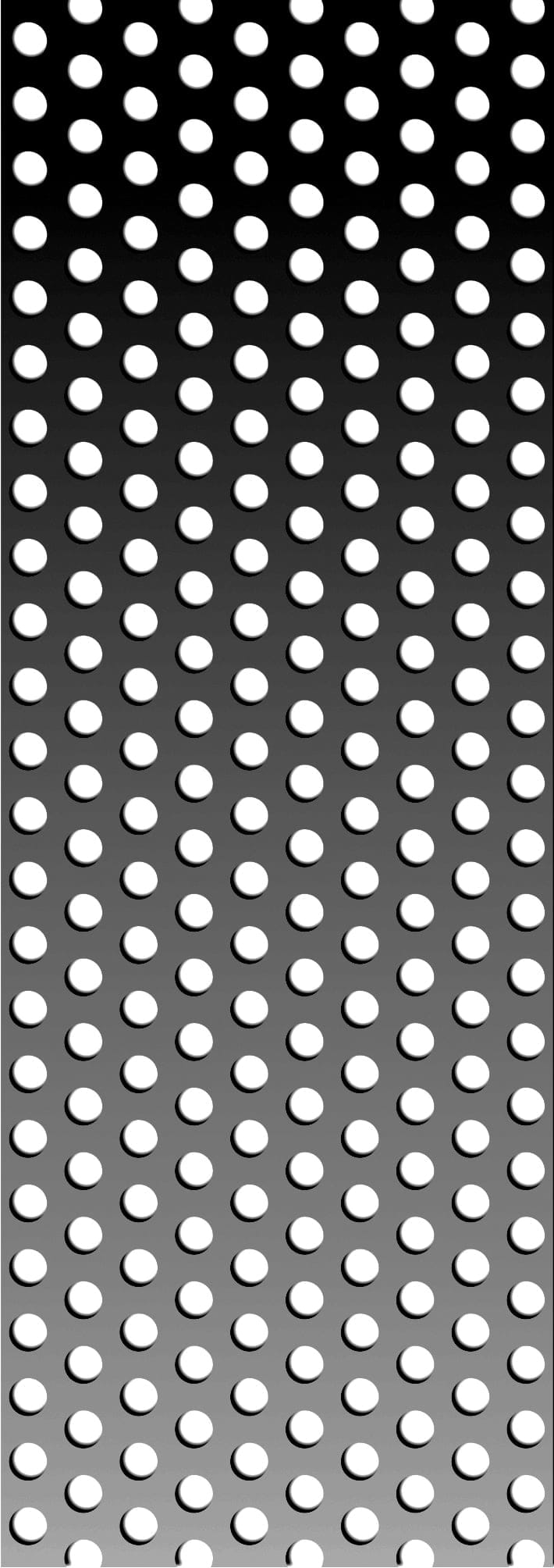

MP 040707
- Hole
- ⌀ 4 mm
- Pitch
- 7 mm
- Open area
- 29%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

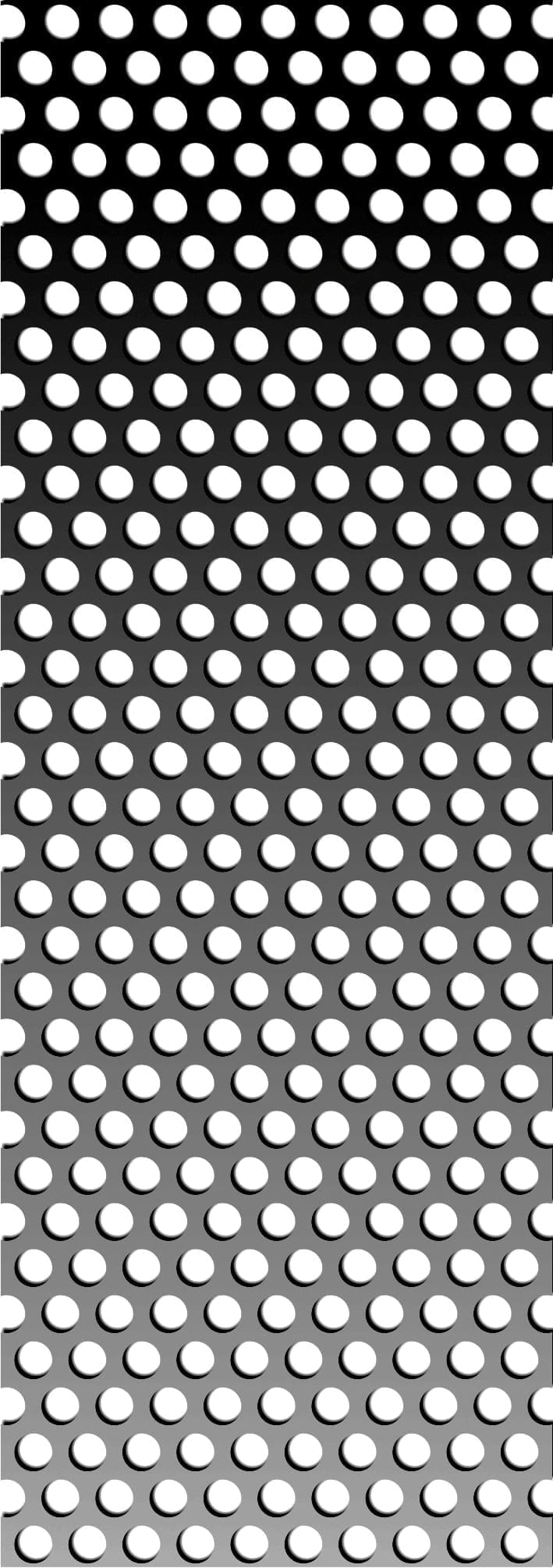

MP 041005
- Hole
- ⌀ 4 mm
- Pitch
- 10 × 5.8 mm
- Open area
- 42%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

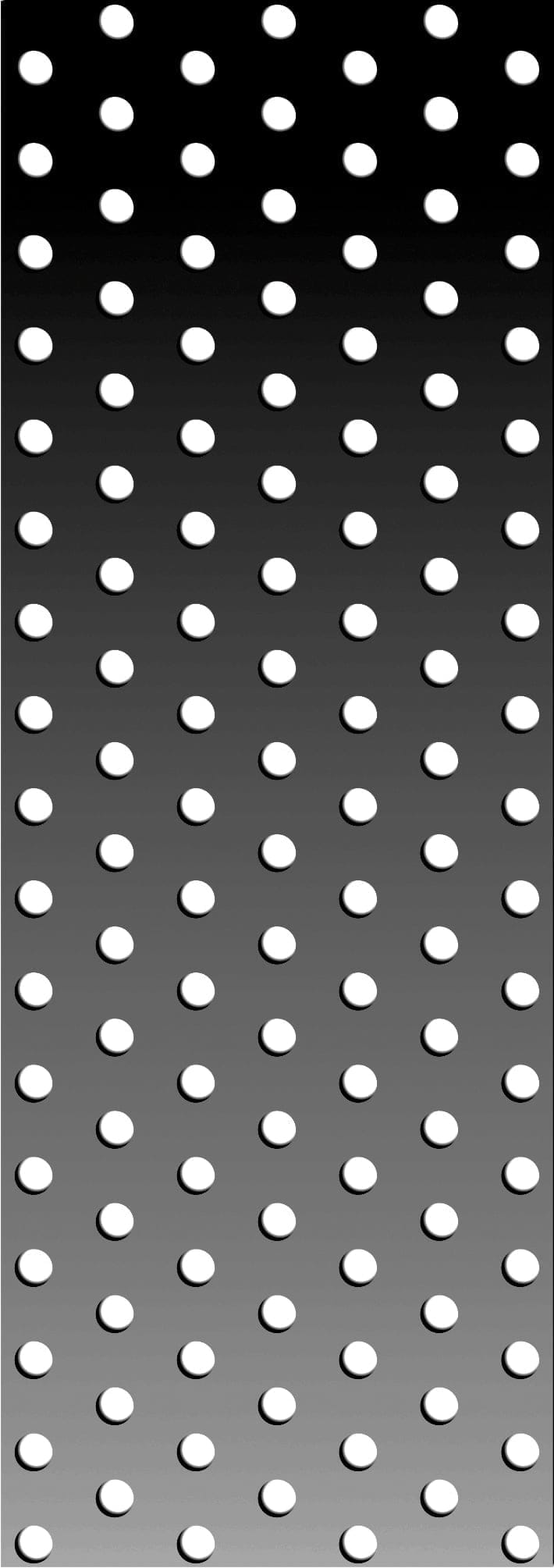

MP 041010
- Hole
- ⌀ 4 mm
- Pitch
- 10 mm
- Open area
- 14.4%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

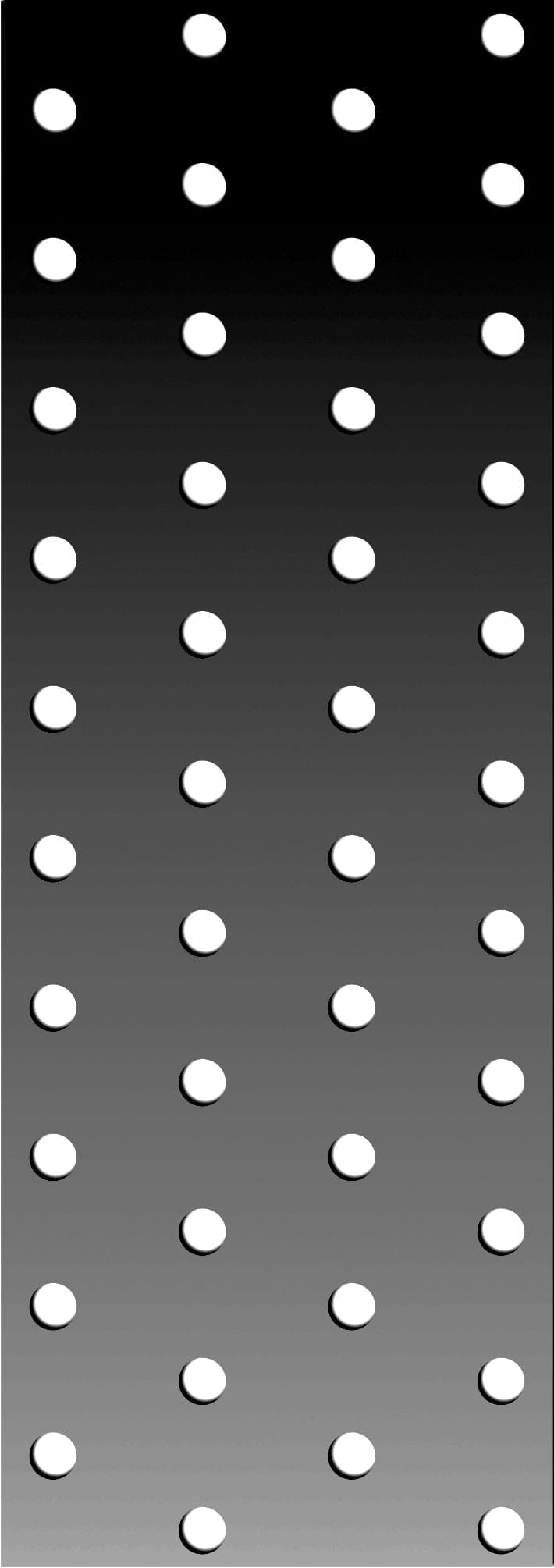

MP 051618
- Hole
- ⌀ 5 mm
- Pitch
- 16.2 × 18.1 mm
- Open area
- 7%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

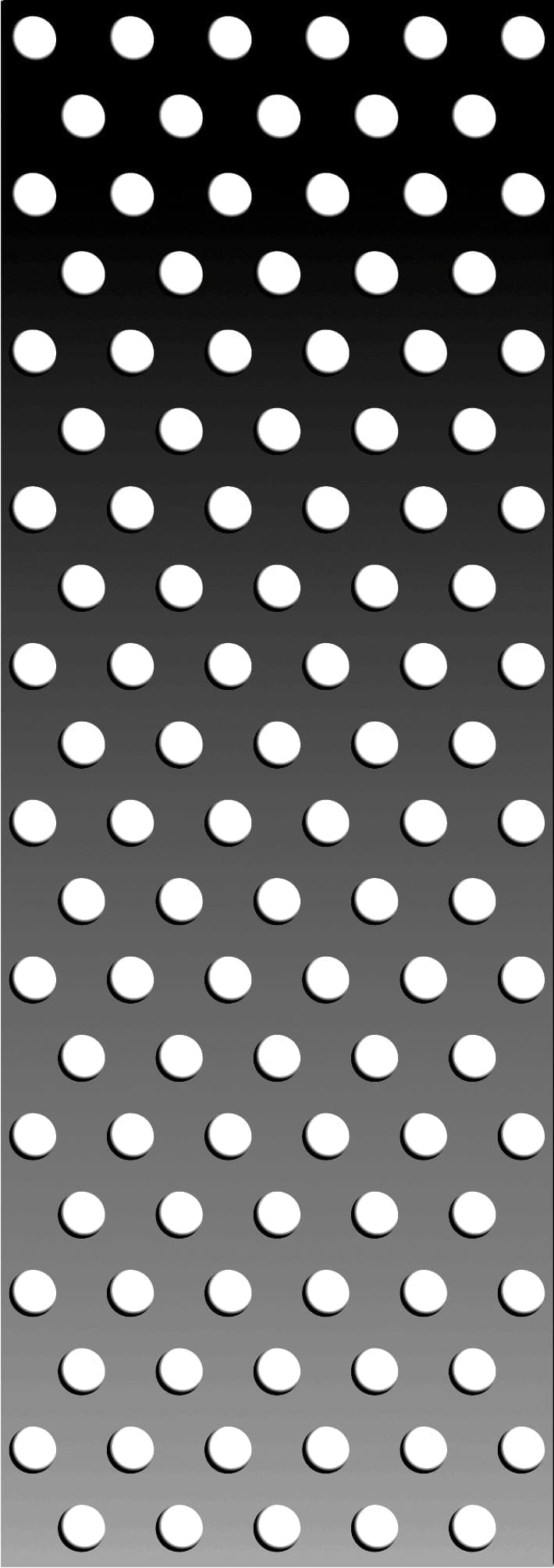

MP 051710
- Hole
- ⌀ 5 mm
- Pitch
- 17 × 10 mm
- Open area
- 22.5%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

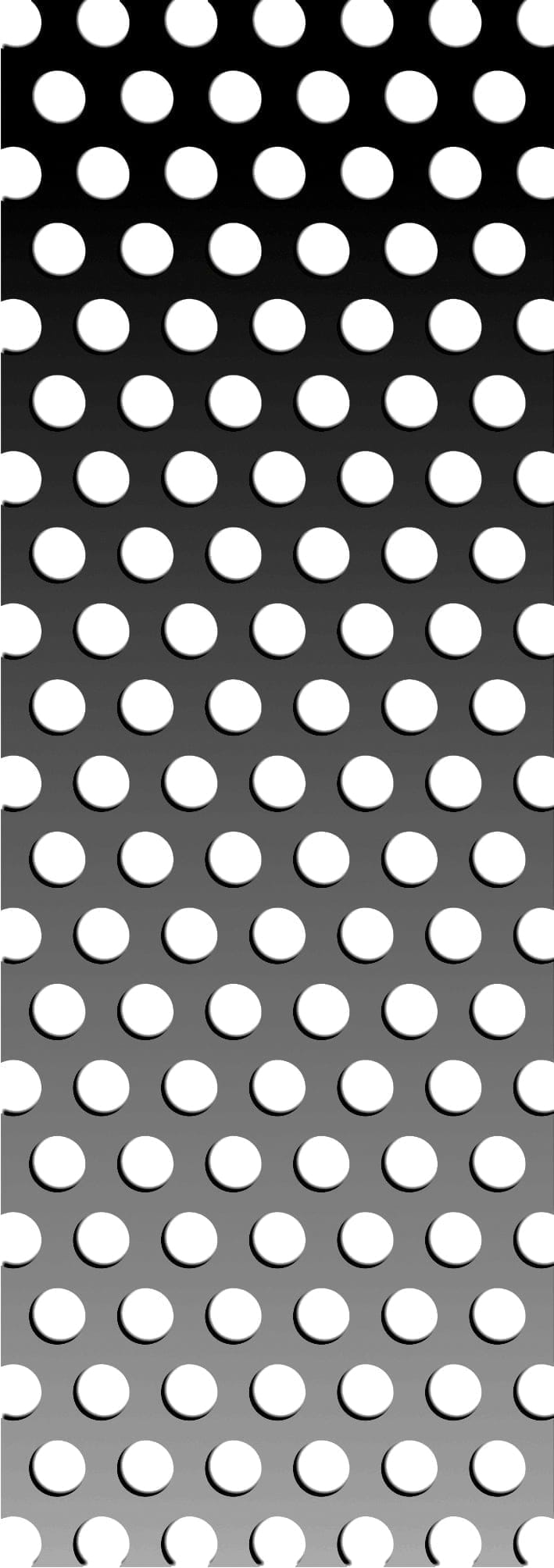

MP 061609
- Hole
- ⌀ 6 mm
- Pitch
- 16.5 × 9.5 mm
- Open area
- 36%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

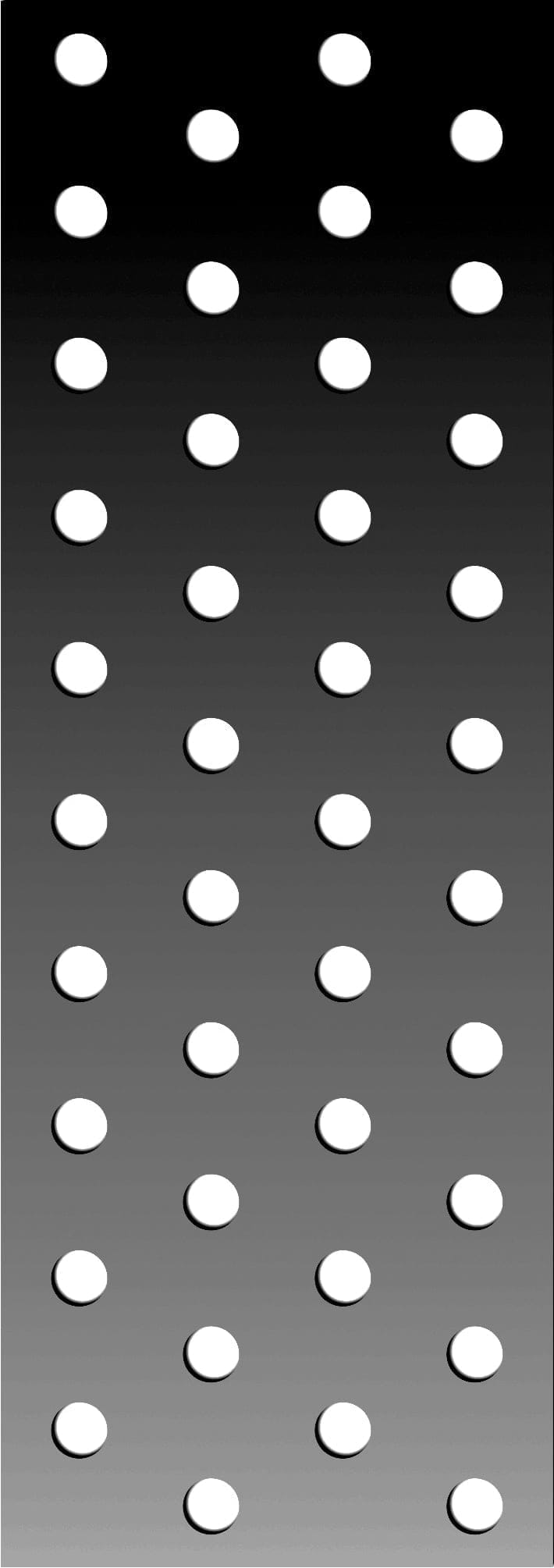

MP 061616
- Hole
- ⌀ 6 mm
- Pitch
- 16.5 mm
- Open area
- 12%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

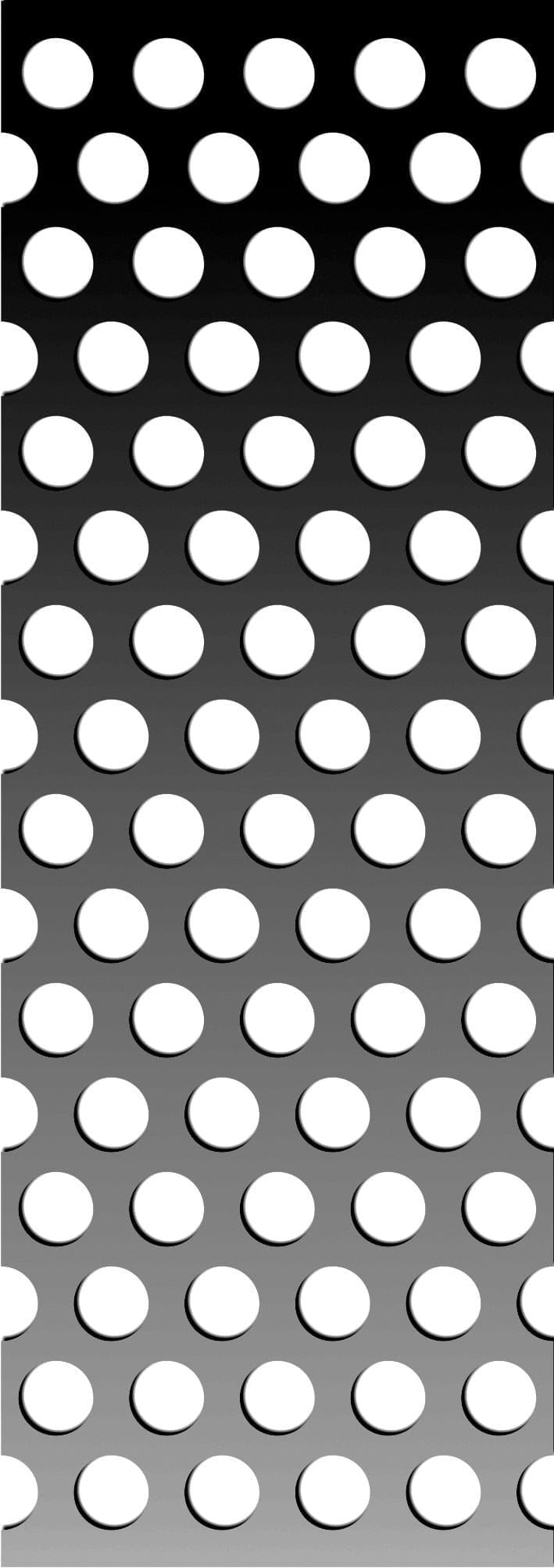

MP 082011
- Hole
- ⌀ 8 mm
- Pitch
- 20.5 × 11.9 mm
- Open area
- 8%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

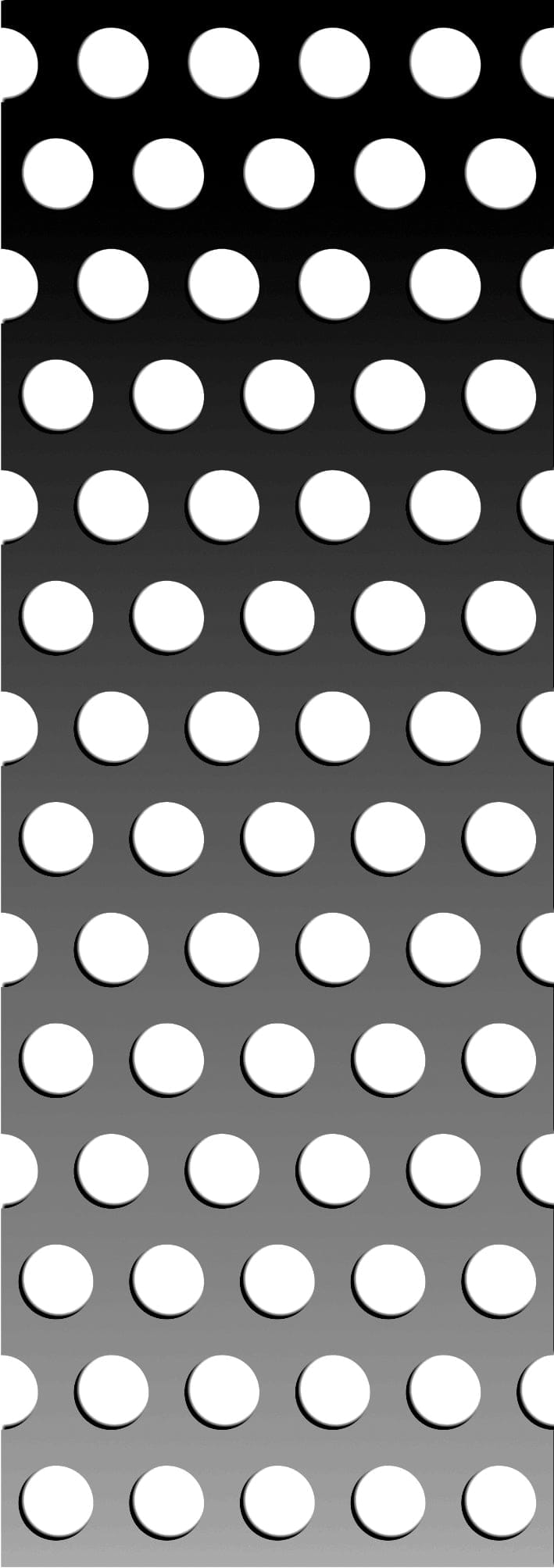

MP 082413
- Hole
- ⌀ 8 mm
- Pitch
- 24 × 13.4 mm
- Open area
- 28%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

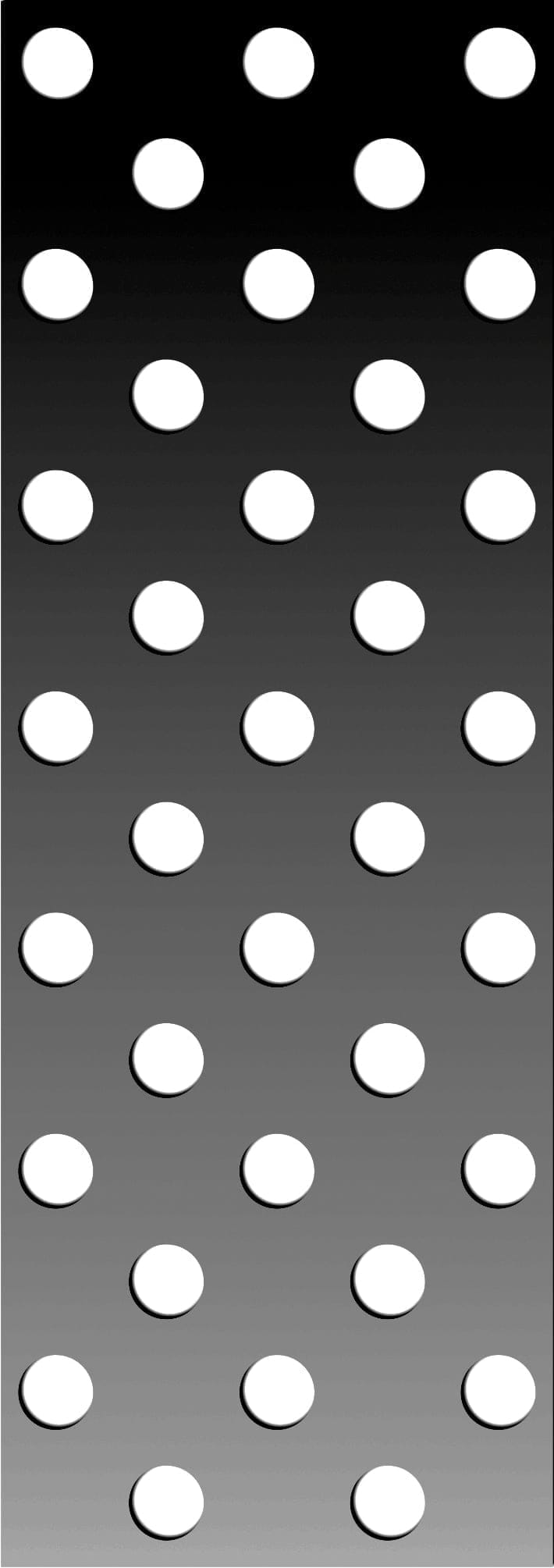

MP 082417
- Hole
- ⌀ 8 mm
- Pitch
- 24 × 17 mm
- Open area
- 17.4%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

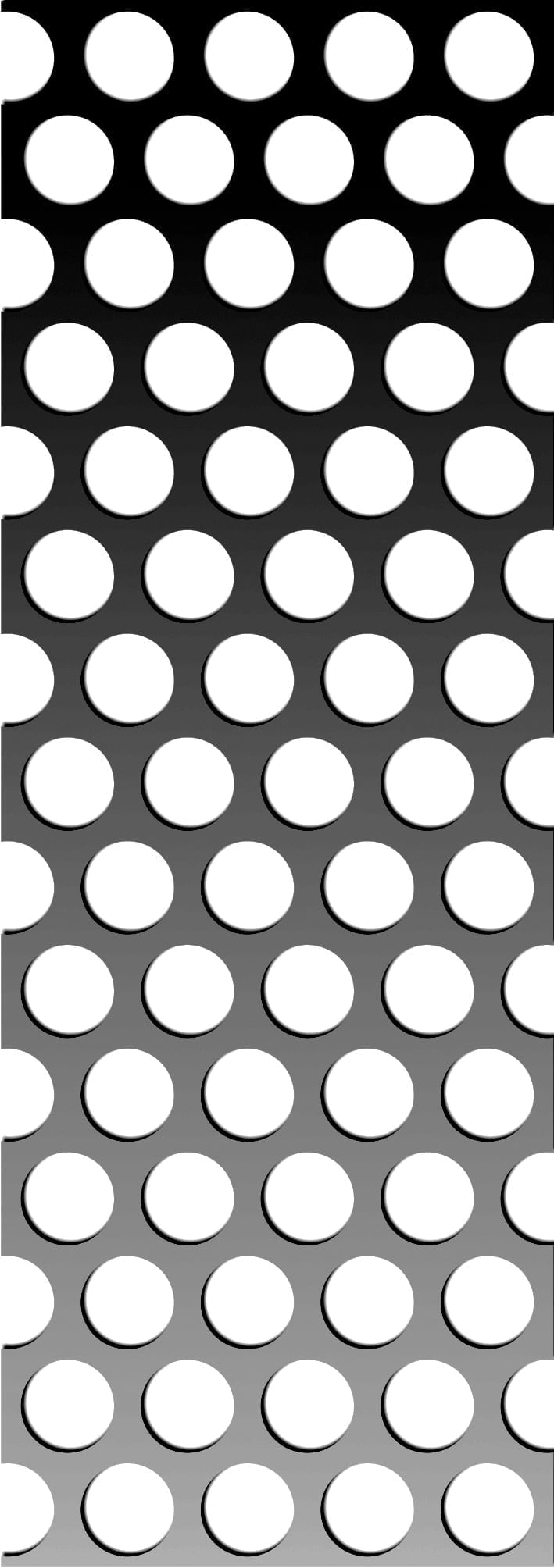

MP 102213
- Hole
- ⌀ 10 mm
- Pitch
- 22.5 × 13 mm
- Open area
- 53.8%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

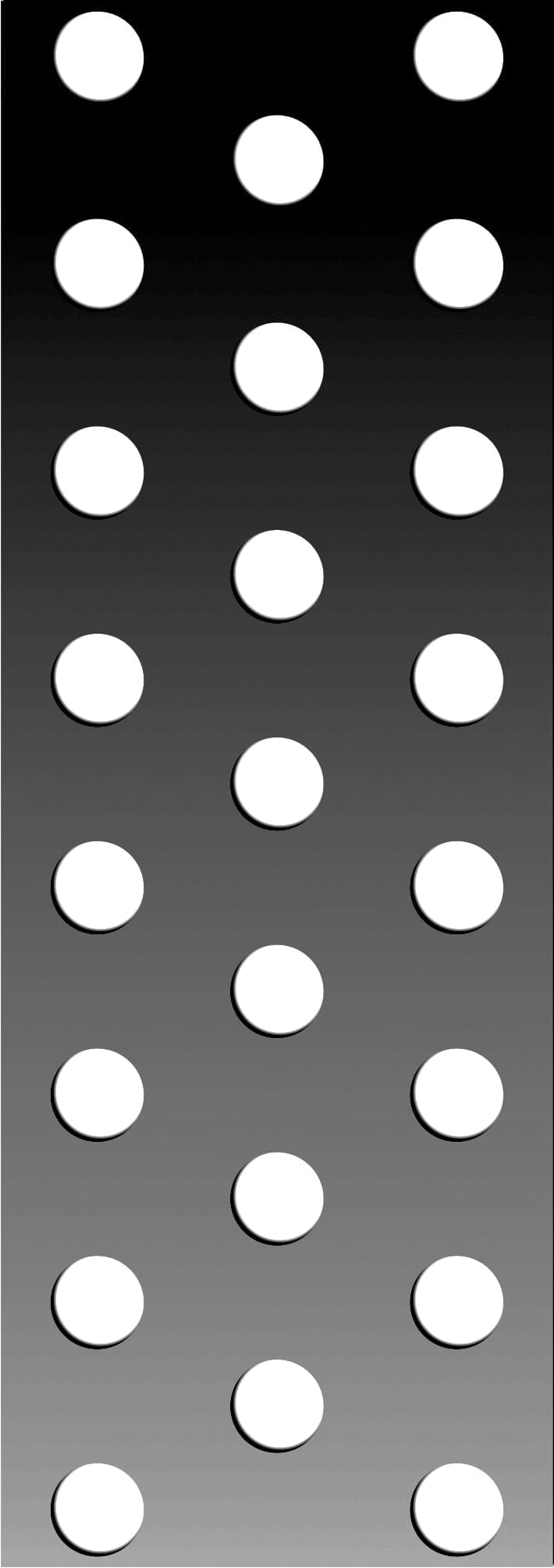

MP 102222
- Hole
- ⌀ 10 mm
- Pitch
- 22.5 mm
- Open area
- 17.8%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

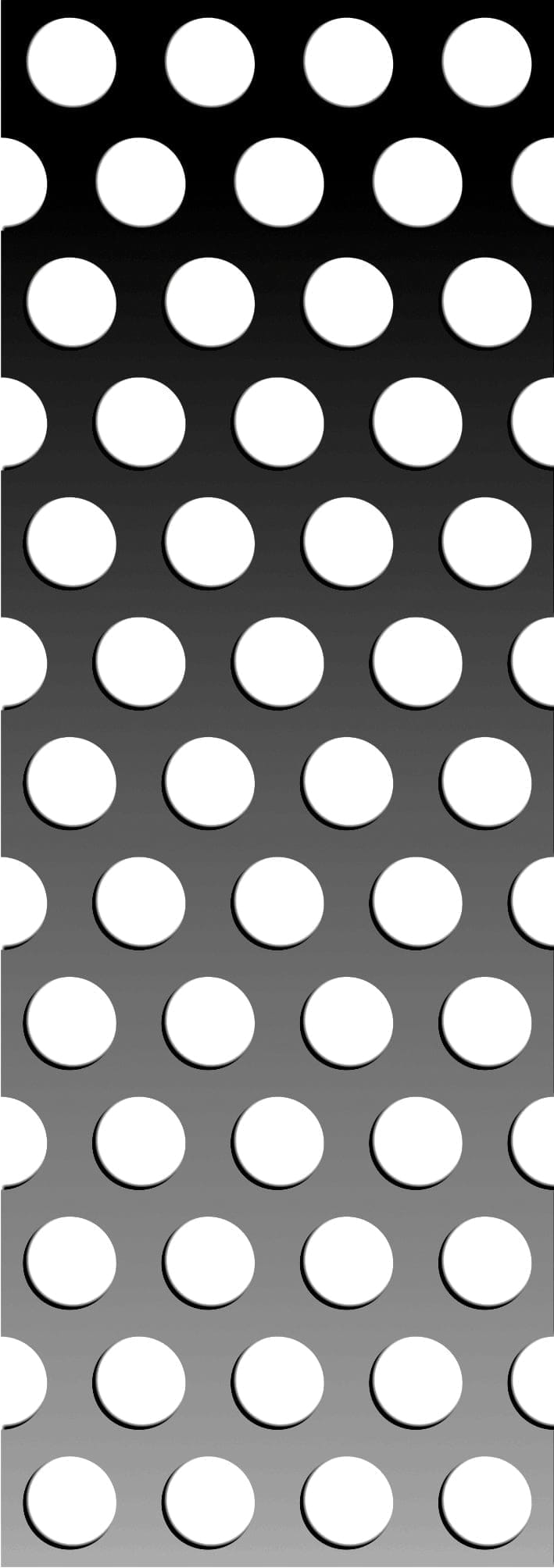

MP 102615
- Hole
- ⌀ 10 mm
- Pitch
- 26 × 15 mm
- Open area
- 40%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

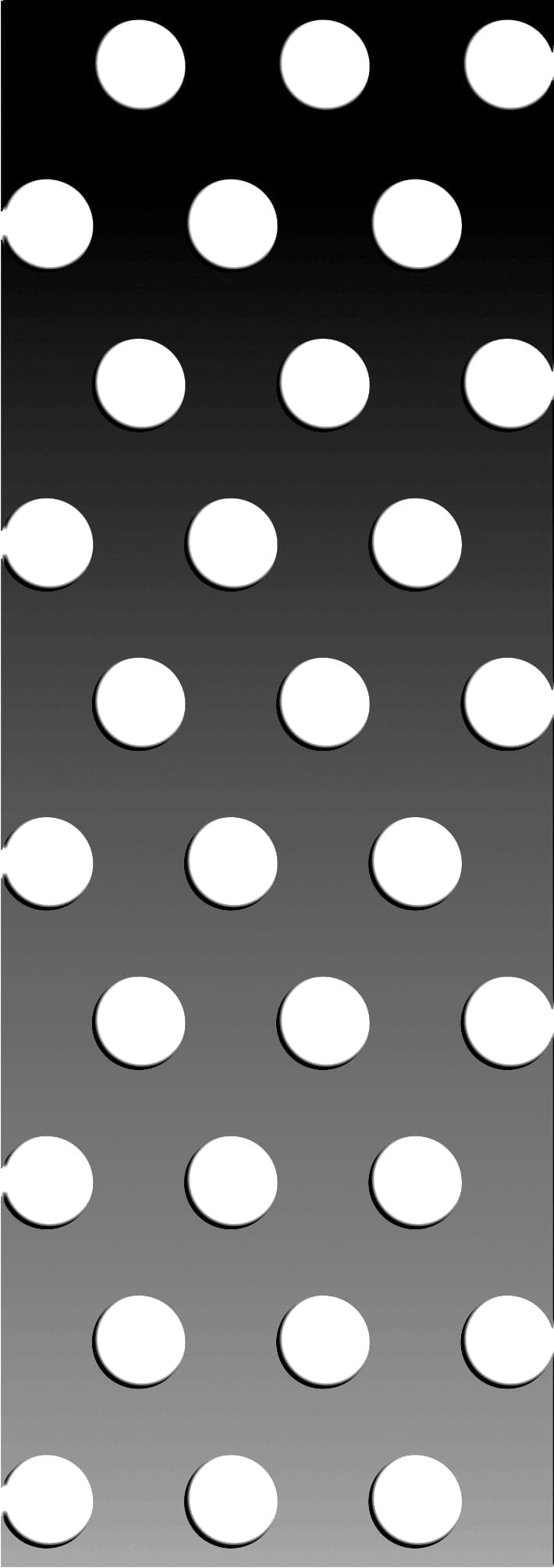

MP 103420
- Hole
- ⌀ 10 mm
- Pitch
- 34.6 × 20 mm
- Open area
- 22.5%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

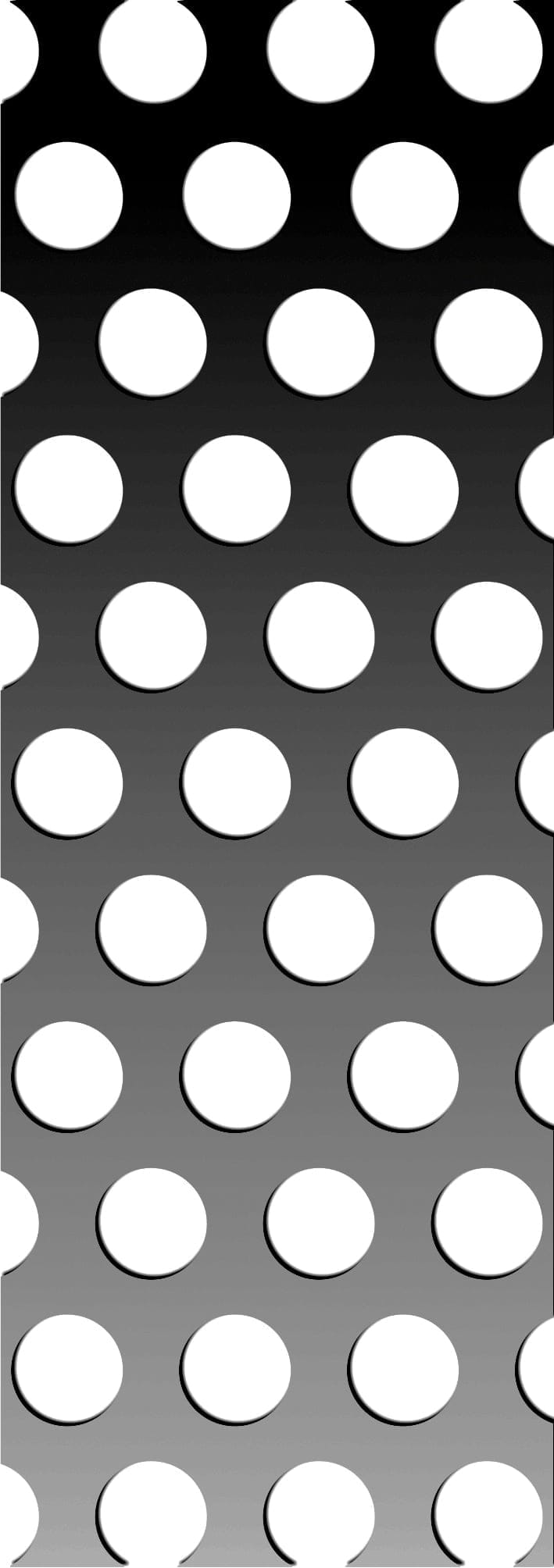

MP 123118
- Hole
- ⌀ 12 mm
- Pitch
- 31.8 × 18.3 mm
- Open area
- 38.7%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

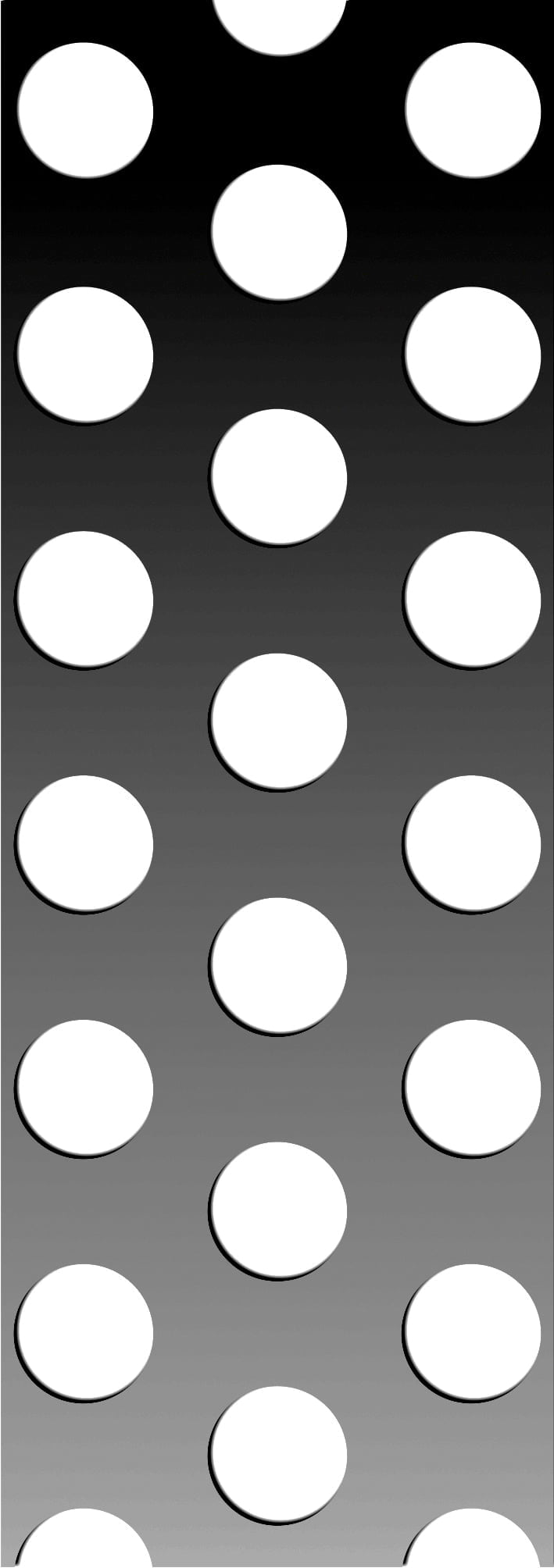

MP 152624
- Hole
- ⌀ 15 mm
- Pitch
- 26.5 × 24.8 mm
- Open area
- 33%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

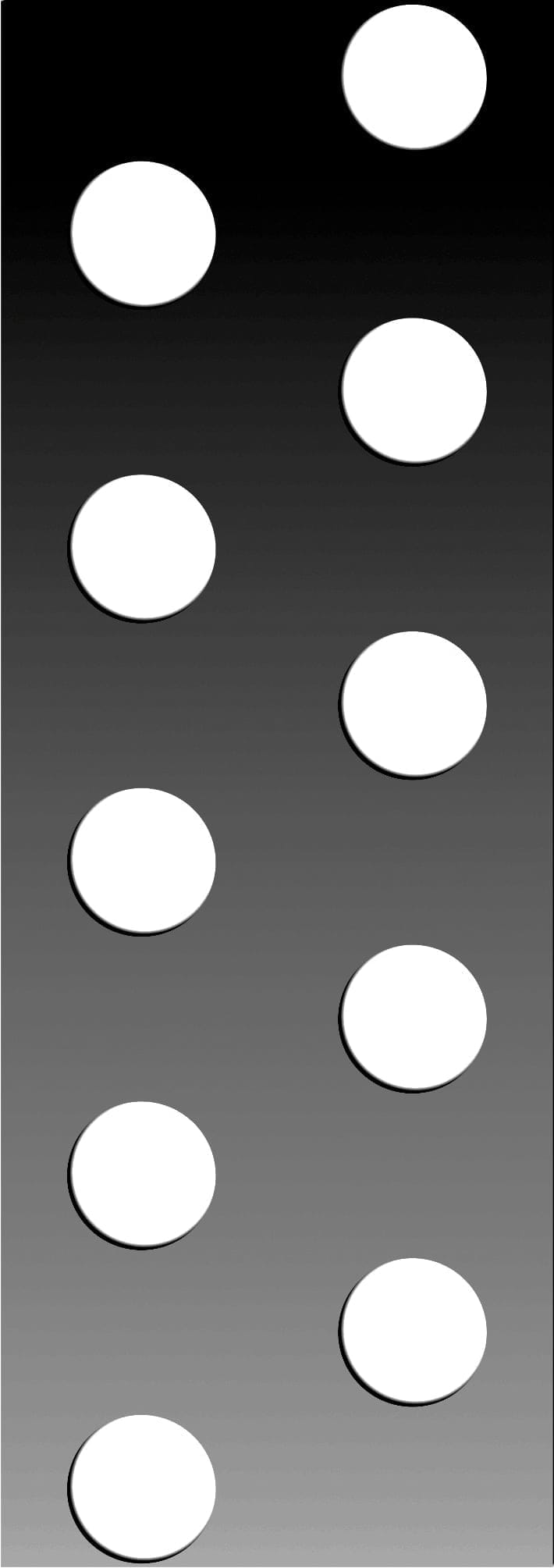

MP 163434
- Hole
- ⌀ 16 mm
- Pitch
- 34 mm
- Open area
- 20%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

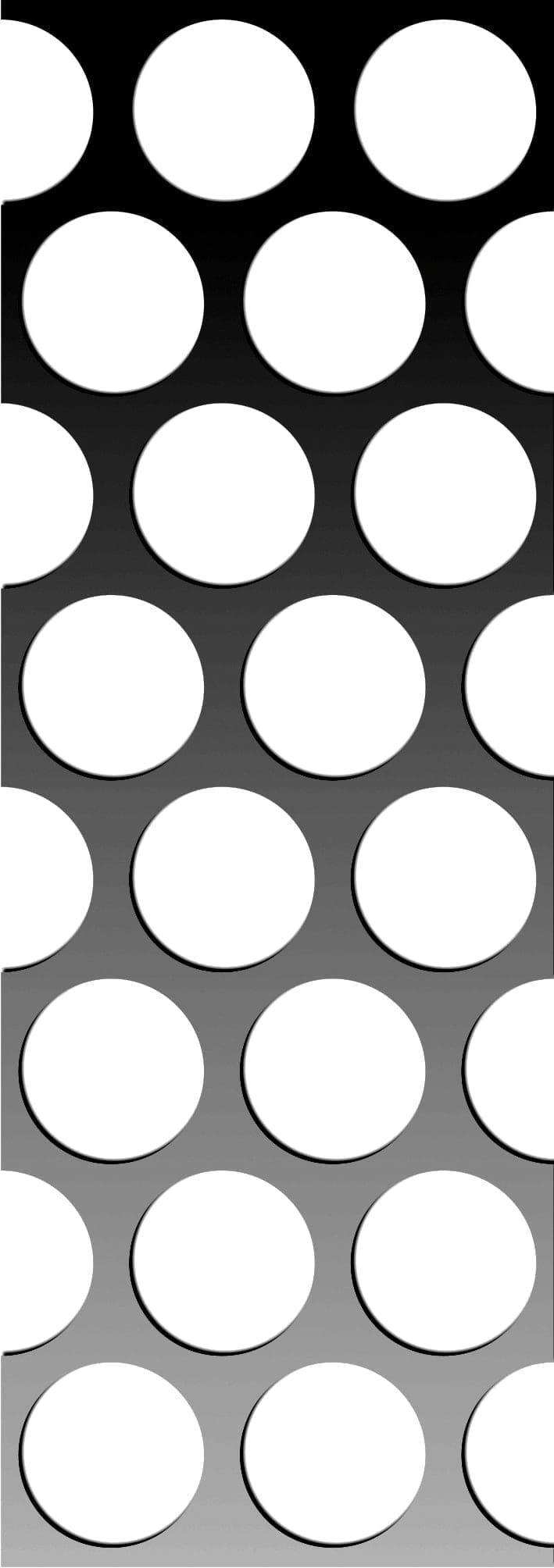

MP 204124
- Hole
- ⌀ 20 mm
- Pitch
- 41.6 × 24 mm
- Open area
- 62%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

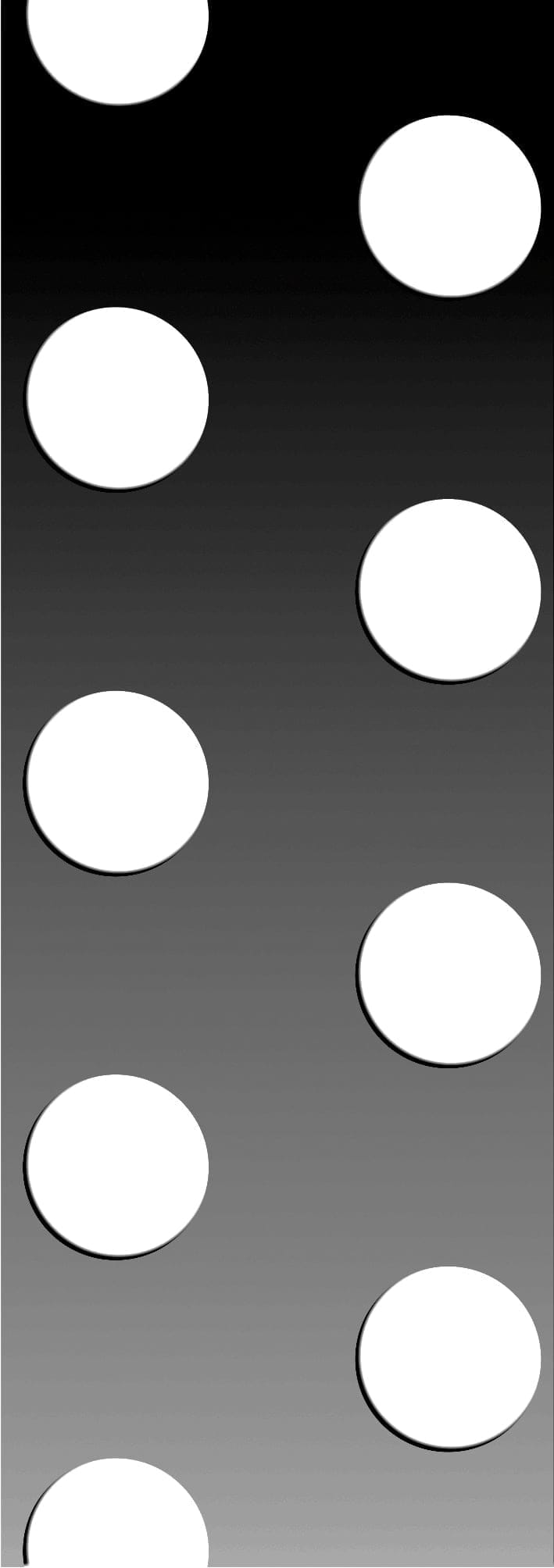

MP 204141
- Hole
- ⌀ 20 mm
- Pitch
- 41.6 mm
- Open area
- 20.8%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request

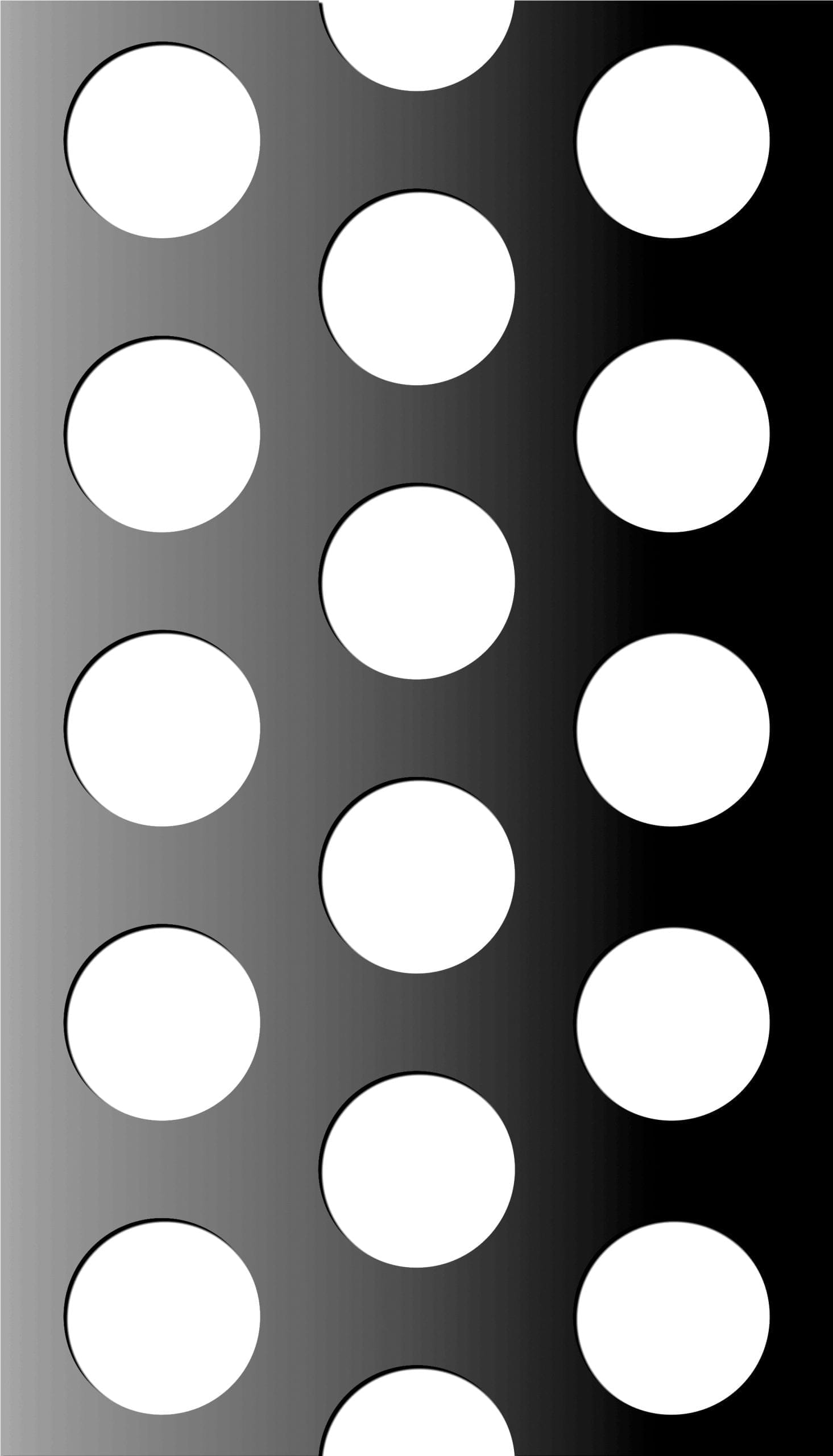

MP 4010460
- Hole
- ⌀ 40 mm
- Pitch
- 104 × 60 mm
- Open area
- 20.8%
- Max width
- 2000 mm
- Max length
- 4000 mm
- Materials
- Steel, aluminium, corten, stainless steel, galvanised steel
- Surface finish
- Any project-specific RAL colour on request
RAL colour options
Applied in any project-specific RAL colour on request.
