Moving Facade

Name: Moving Facade
Brand: FacadArt

Dynamic, kinetic facades that control sun and light.

Driven by sliding and folding panel systems — manual or motorised — moving facades hand solar control and daylight to the user, giving the building a living surface that changes through the day while protecting it from the sun and harsh weather.

Key features

Manual and motorised system options
Modern, dynamic facade solutions
Innovative protection against the sun and adverse weather
Bespoke solutions for individual projects
Corrosion-resistant aluminium and stainless steel
Effective protection against intruders and prying eyes
A perfect combination of aluminium, wood and glass
A wide, functional and high-quality product range
Connection options into the window reveal or onto outer wall surfaces

Get a quote for this product All products

Documents

3K Catalogue (PDF)

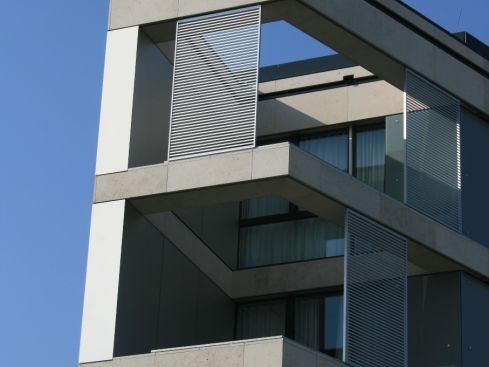

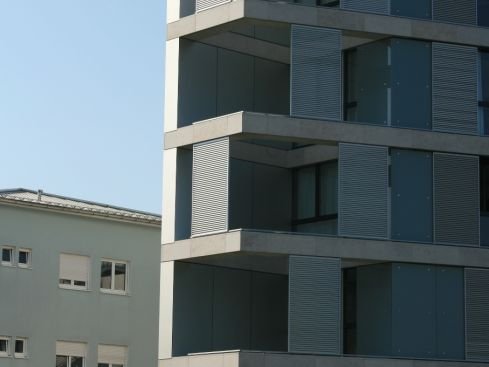

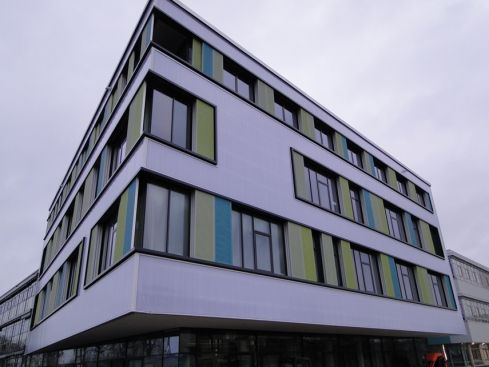

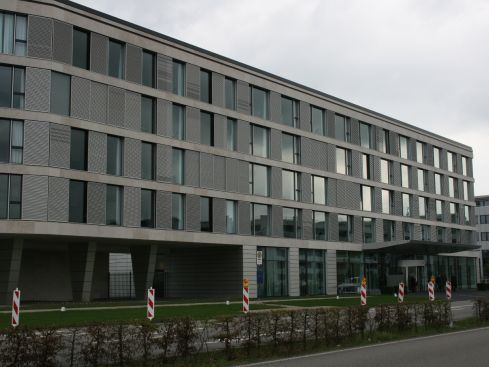

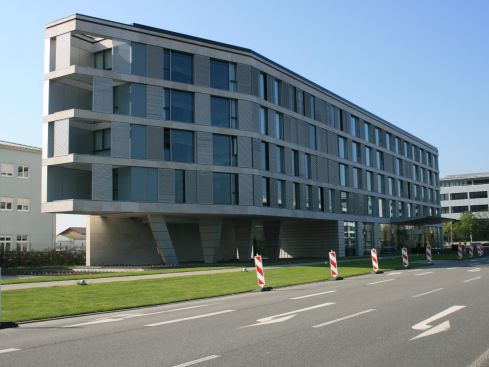

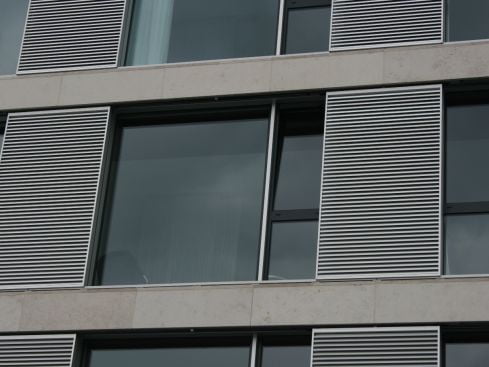

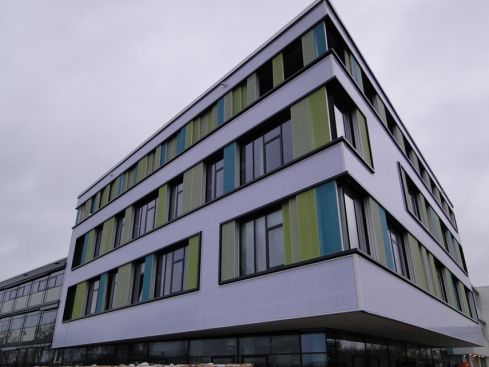

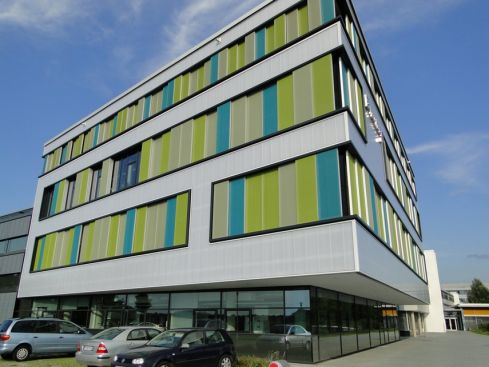

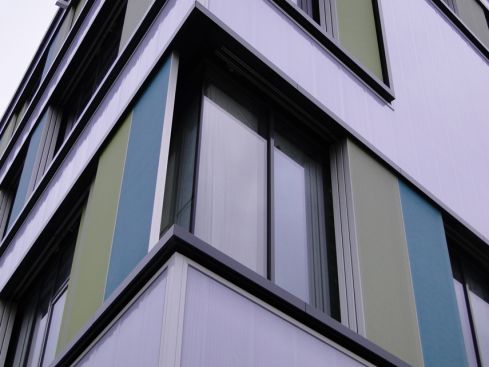

Sliding panel systems

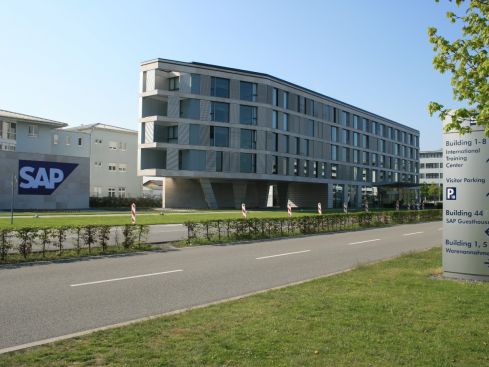

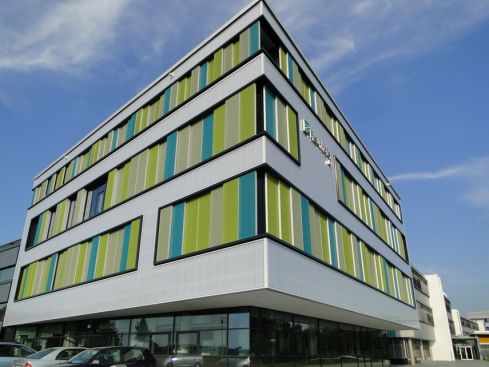

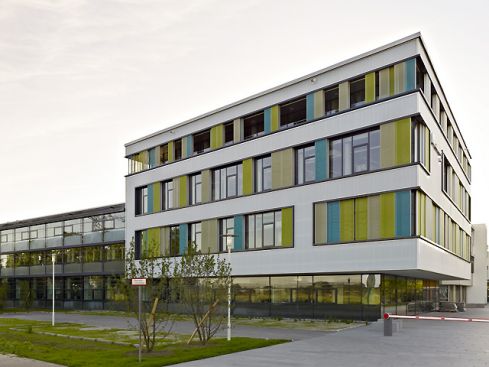

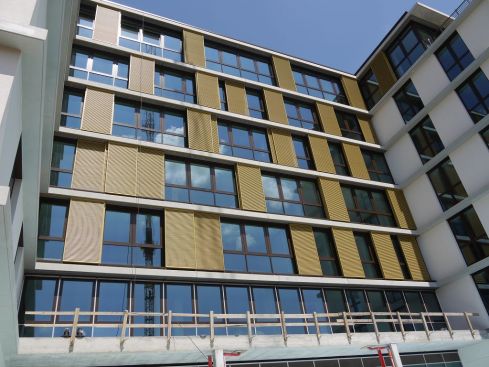

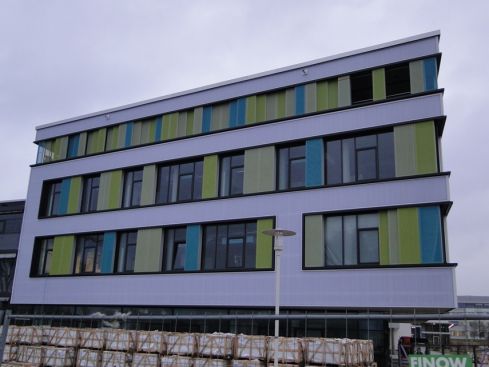

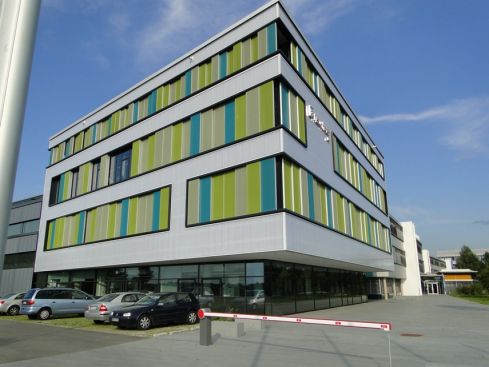

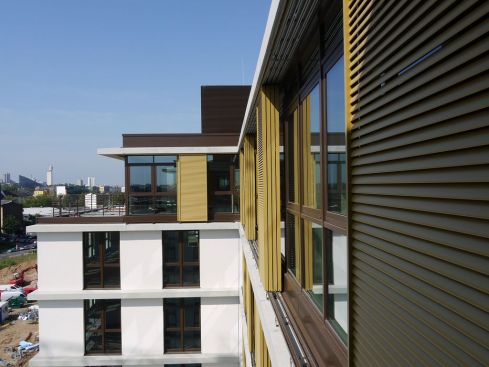

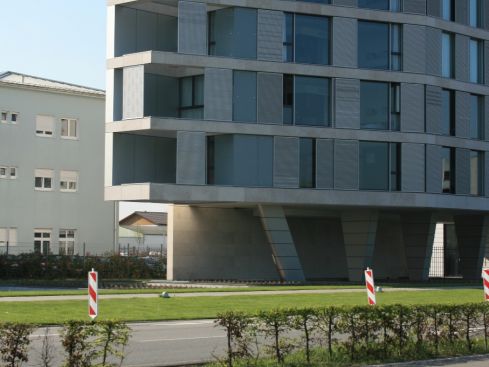

Sliding panel systems add a modern look to the building while bringing the sun in under control. Decorative in appearance, they operate either motorised or manually, sliding sideways along their tracks.

Request this system

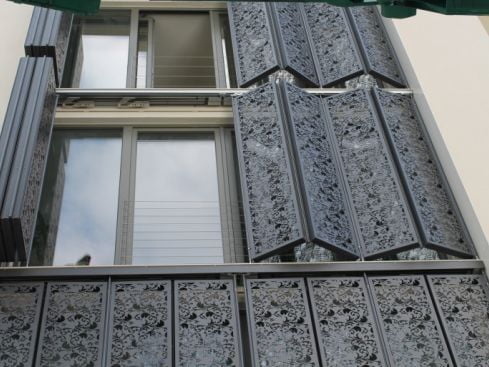

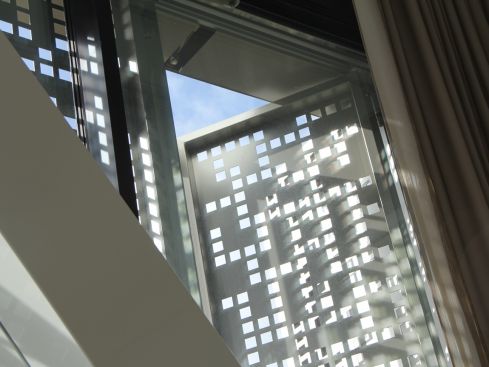

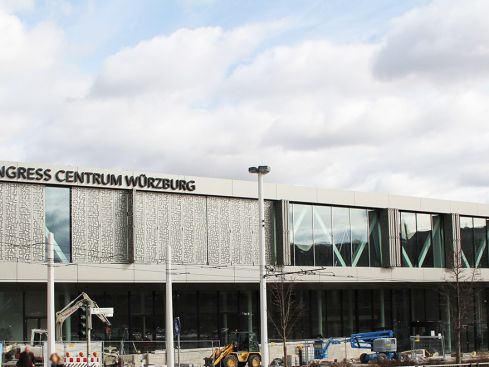

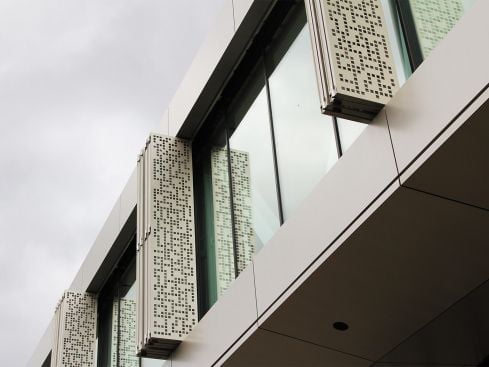

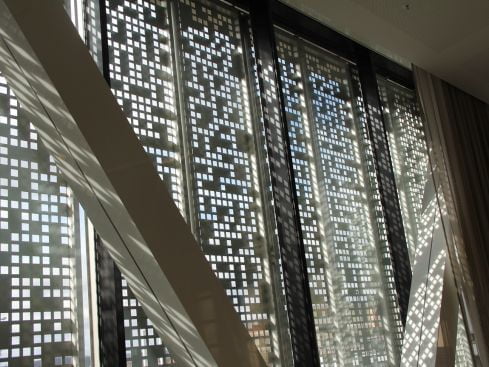

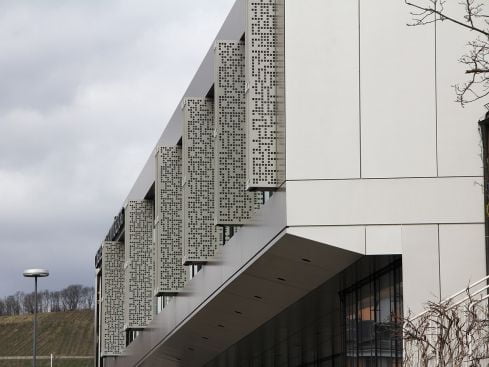

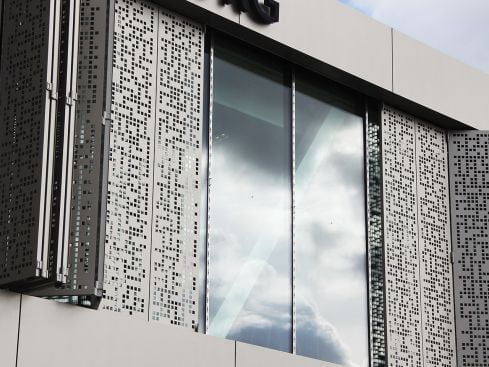

Folding panel systems

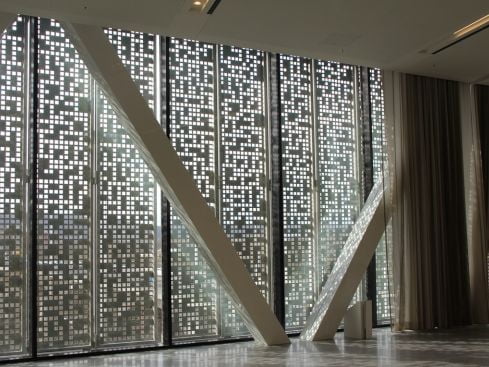

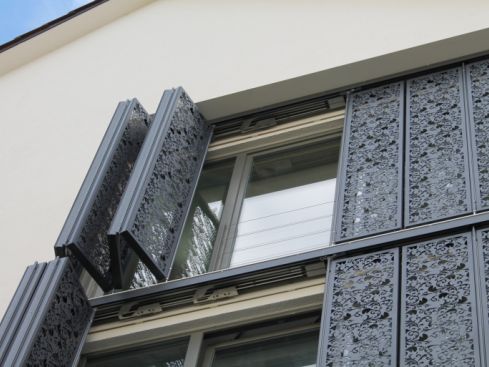

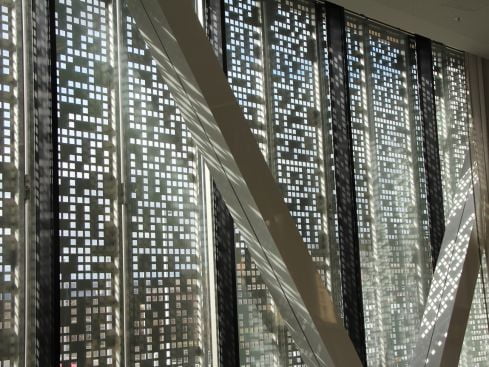

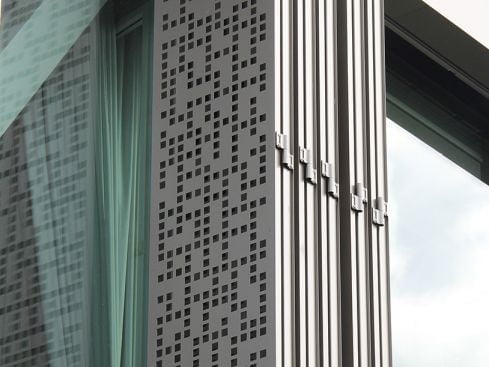

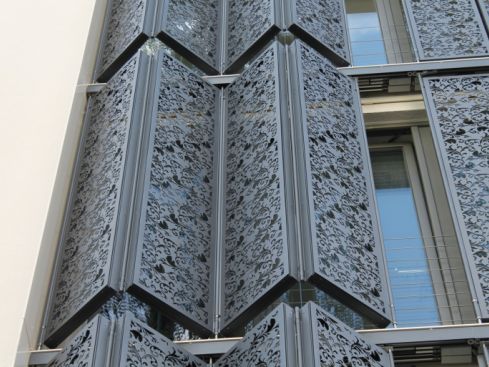

Folding panel systems add a modern look to the building while bringing the sun in under control. Decorative in appearance, they operate either motorised or manually, folding open in an accordion action.

Request this system

A living surface

Movable facade system panels — sliding and folding, manual or motorised — give the building an expression that changes through the day, adding aesthetic and visual richness while protecting the interior from the sun and harsh weather. They are applied in all RAL colour options and with anodised, wood-film and natural-wood transfer finishes, and used reliably with their own dedicated profiles, locking, hinges and other accessories.

K30 Panel System

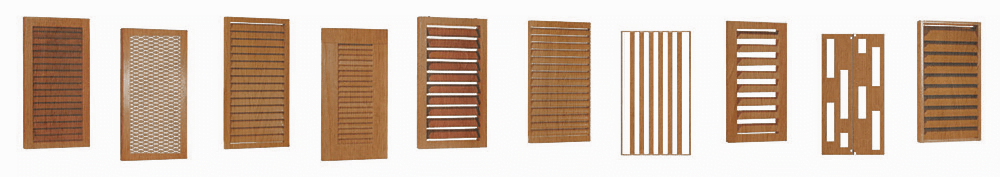

Materials: aluminium and stainless steel. The frame interiors can be filled with any material desired — for example louvre blades, perforated sheet, expanded-metal sheets, wood and its derivatives.

Special accessory solutions for manually operated systems on request — with servo motors and bespoke electronic folding automatic systems
Operation by remote control or by sensor (wind, sun)
Special solutions for wide spans
Symmetric or asymmetric applications, with easy installation
Roller accessories made from specially coated and alloyed materials

Specification	Value
Panel count	Manually, an unlimited number of panel pairs
Wind permeability	At least 50% permeability
Height	From 600 mm wide up to 3000 mm high
Weight per panel	40 kg
System case depth	30–33 mm

K60 Panel System

Materials: aluminium and stainless steel. The frame interiors can be filled with any material desired — for example louvre blades, perforated sheet, expanded-metal sheets, wood and its derivatives.

Special accessory solutions for manually operated systems on request — with servo motors and bespoke electronic folding automatic systems
Operation by remote control or by sensor (wind, sun)
Special solutions for wide spans
Symmetric or asymmetric applications, with easy installation
Roller accessories made from specially coated and alloyed materials

Specification	Value
Operation	Automatic — 2 / 4 / 6 leaves (single direction)
Height	From 900 mm wide up to 3000 mm high
Weight per panel	50 kg
System case depth	60 mm (standard)
