Ceiling & Flooring

Acoustic Panels

Name: Acoustic Panels
Brand: FacadArt

Colour options

Wall & ceiling panels for sound insulation and acoustic regulation.

Acoustic products are products generally used for sound insulation and acoustic regulation. They are designed to perform functions such as reflecting, absorbing or diffusing sound.

Key features

Sound insulation & regulation
Wall & ceiling panels
MDF melamine / solid wood
KARO αw 0.37 – 0.93

Get a quote for this product All products

Acoustic wall panels

Acoustic wall panels are panels mounted on walls to improve sound insulation and acoustic performance in a room. They are usually made of special sound-absorbing or reflecting materials and come in many different shapes, sizes and colours. Their function is to provide better sound quality by reducing echo in the room.

Acoustic wall panels are used in a variety of settings:

Studio recording rooms: In music studios and sound recording rooms, acoustic wall panels are used to reduce unwanted echo and increase the clarity of sound.

Cinema halls: In cinema halls, acoustic panels are placed on the walls to help sound distribute better and to improve sound insulation.

Offices and conference halls: In offices and conference halls, acoustic wall panels are preferred to reduce noise and make speech easier to hear clearly.

Restaurants and cafés: In restaurants and cafés, acoustic panels can be placed on the walls for sound insulation and acoustic regulation so that customers can chat comfortably.

Acoustic ceiling panels

Acoustic ceiling panels are panels mounted on the ceiling and designed to provide the same acoustic regulation. They usually have sound-absorbing or reflecting properties and offer better sound quality by reducing echo on the ceiling.

The areas where acoustic ceiling panels are used include:

Offices and commercial buildings: In offices and commercial buildings, acoustic ceiling panels are used to reduce noise and increase work efficiency.

Hospitals and schools: In areas such as hospital rooms and classrooms, acoustic ceiling panels are preferred to provide a quiet, comfortable environment.

Public areas: In public areas such as airports, shopping centres and train stations, acoustic ceiling panels reduce echo in large spaces for a more comfortable environment.

Acoustic wall and ceiling panels are an effective solution used to improve sound quality and enhance sound insulation.

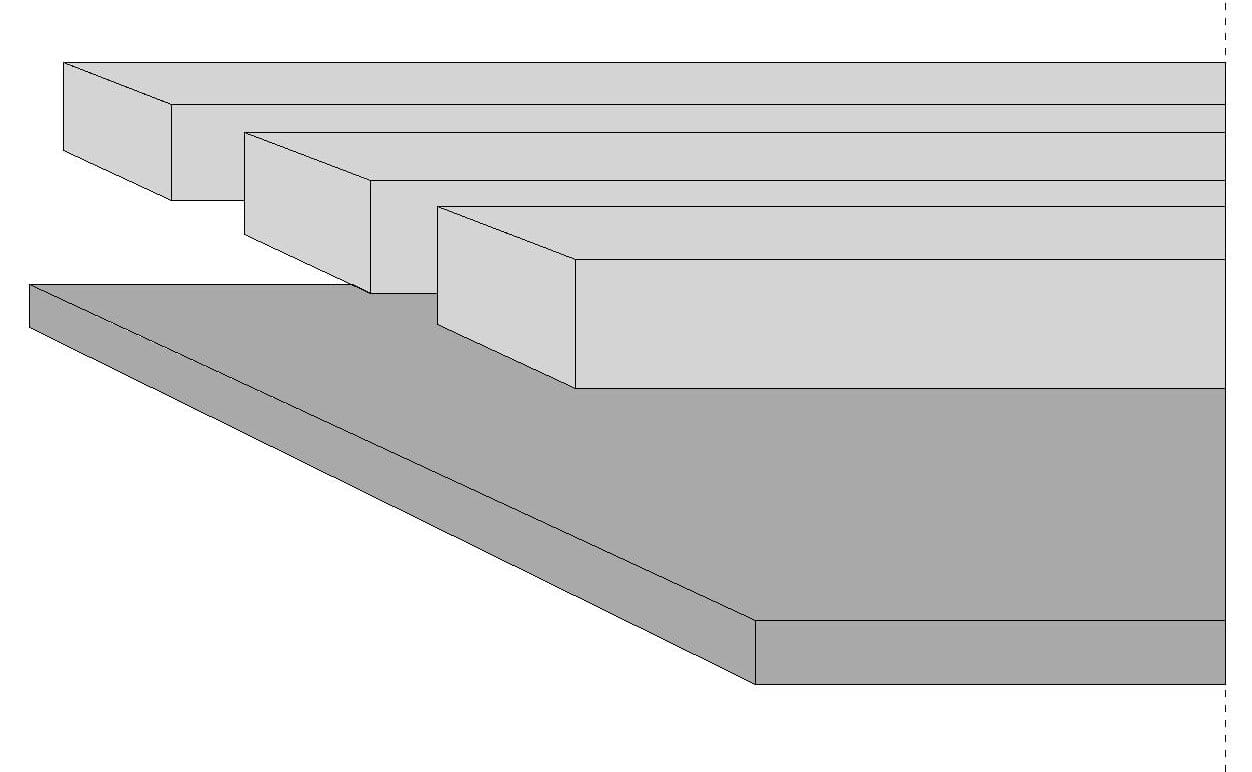

Acoustic Panels — how the system works — Build-up: acoustic felt + wood lamel. Hover the dots.

Technical data

Panel sizes: 600×600 · 600×1200 · 517×1381 · 517×2400 mm

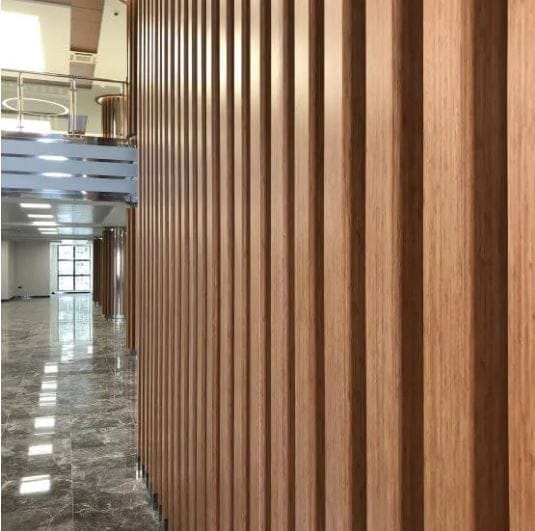

D200 wooden lamel: Solid wood · 18–50 mm thick · 80–140 mm wide
KARO αw range: 0.37 – 0.93
Materials: MDF melamine / solid wood

KARO series

MDF-melamine acoustic panels with varied hole and groove geometry. Grooved versions and the D200 wooden lamel are produced to each project's design.

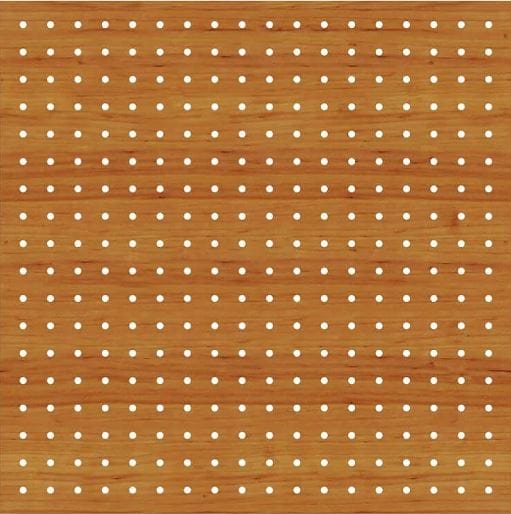

KARO 101

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

1000 holes/m²
Hole spacing 32×32 mm
Hole dia. 4 – 6 – 8 – 10 mm

Back surface

Backed with 0.2 mm Soundtex acoustic fabric.
Sound absorption (αw): 0.40

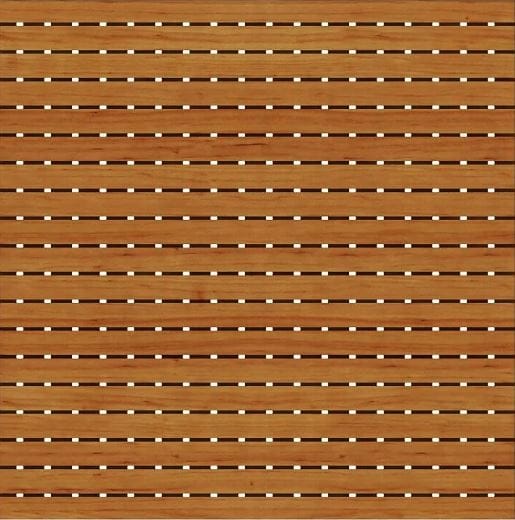

KARO 1011

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

Channelled, channel spacing 32 mm
Channel depth 6 mm
Channel width 3 mm
Channel length 32 m/m²

Back surface

1000 holes/m²
Hole spacing 32×32 mm
Hole dia. 4 – 6 – 8 – 10 mm
Backed with 0.2 mm Soundtex acoustic felt.
Sound absorption (αw): 0.37

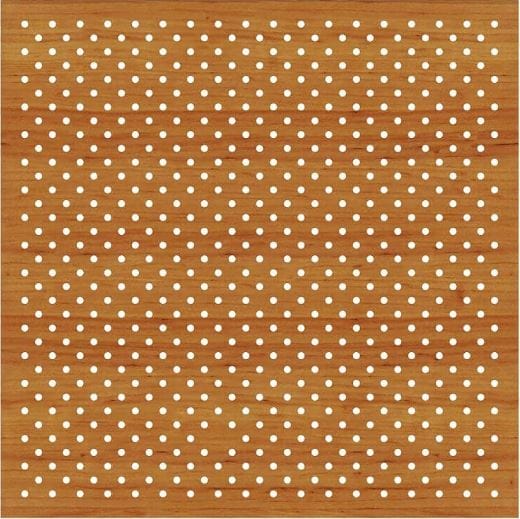

KARO 1012

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

2000 holes/m²
Hole spacing 32×16 mm
Hole dia. 4 – 6 – 8 – 10 mm

Back surface

Backed with 0.2 mm Soundtex acoustic fabric.
Sound absorption (αw): 0.71

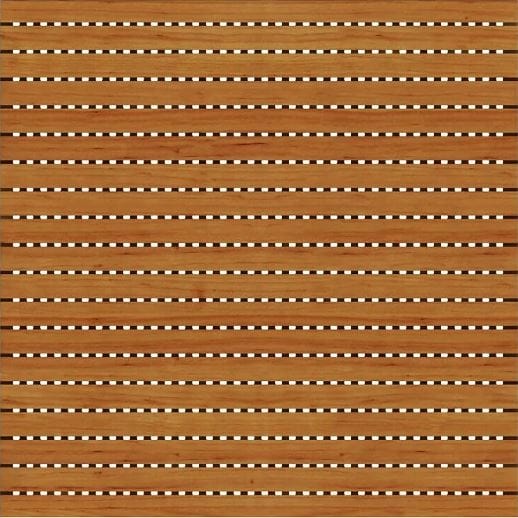

KARO 1021

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

Channelled, channel spacing 16 mm
Channel depth 6 mm
Channel width 3 mm
Channel length 64 m/m²

Back surface

2000 holes/m²
Hole spacing 32×16 mm
Hole dia. 4 – 6 – 8 – 10 mm
Backed with 0.2 mm Soundtex acoustic felt.
Sound absorption (αw): 0.60

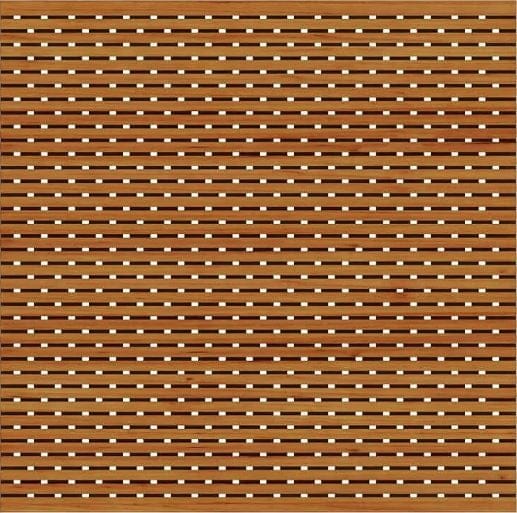

KARO 1022

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

Grooved, groove c/c spacing 16 mm
Groove depth 6 mm
Groove width 3 mm
Channel length 64 m/m²

Back surface

2000 holes/m²
Hole spacing 32×16 mm
Hole dia. 4 – 6 – 8 – 10 mm
Backed with 0.2 mm Soundtex acoustic felt.
Sound absorption (αw): 0.65

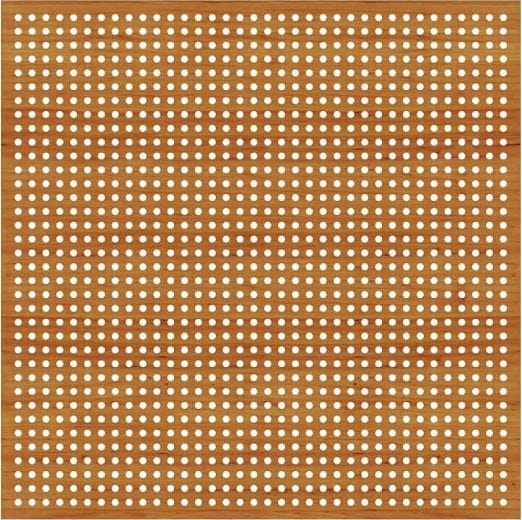

KARO 103

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

4000 holes/m²
Hole spacing 16×16 mm
Hole dia. 4 – 6 – 8 – 10 mm

Back surface

Backed with 0.2 mm Soundtex acoustic fabric.
Sound absorption (αw): 0.90

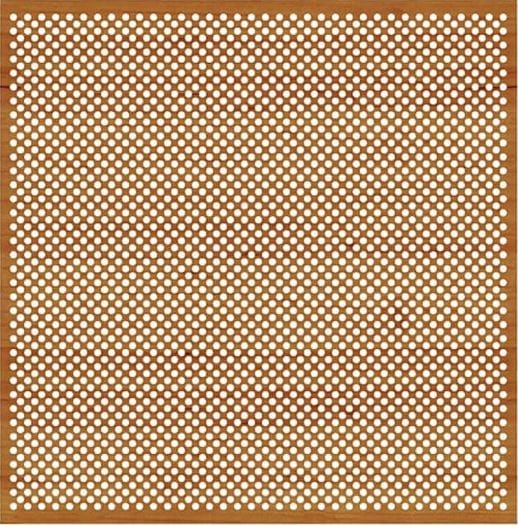

KARO 104

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

8000 holes/m²
Hole spacing 16×8 mm
Hole dia. 4 – 6 – 8 – 10 mm

Back surface

Backed with 0.2 mm Soundtex acoustic fabric.
Sound absorption (αw): 0.93

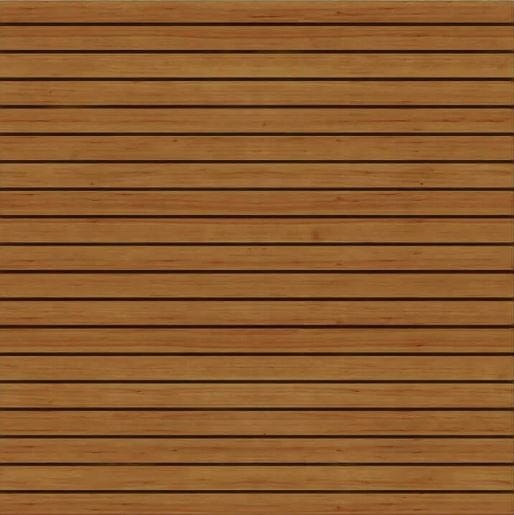

KARO 1001

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

Grooved, groove c/c spacing 32 mm
Groove depth 6 mm
Groove width 3 mm
Channel length 32 m/m²

Back surface

Flat

KARO 1002

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface

Grooved, groove c/c spacing 32 mm
Groove depth 6 mm
Groove width 3 mm

Back surface

Flat

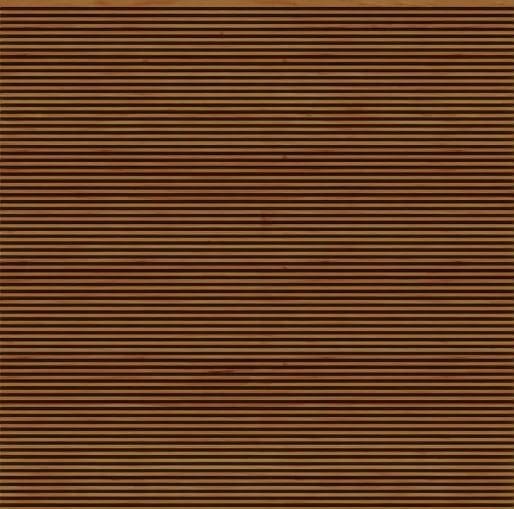

KARO 1003

Sizes: 600×600, 600×1200, 517×1381, 517×2400, 517×1200, 197×2400, 293×2400, 197×1381 mm
Material: MDF melamine, natural veneer, painted and laminated

Front surface
